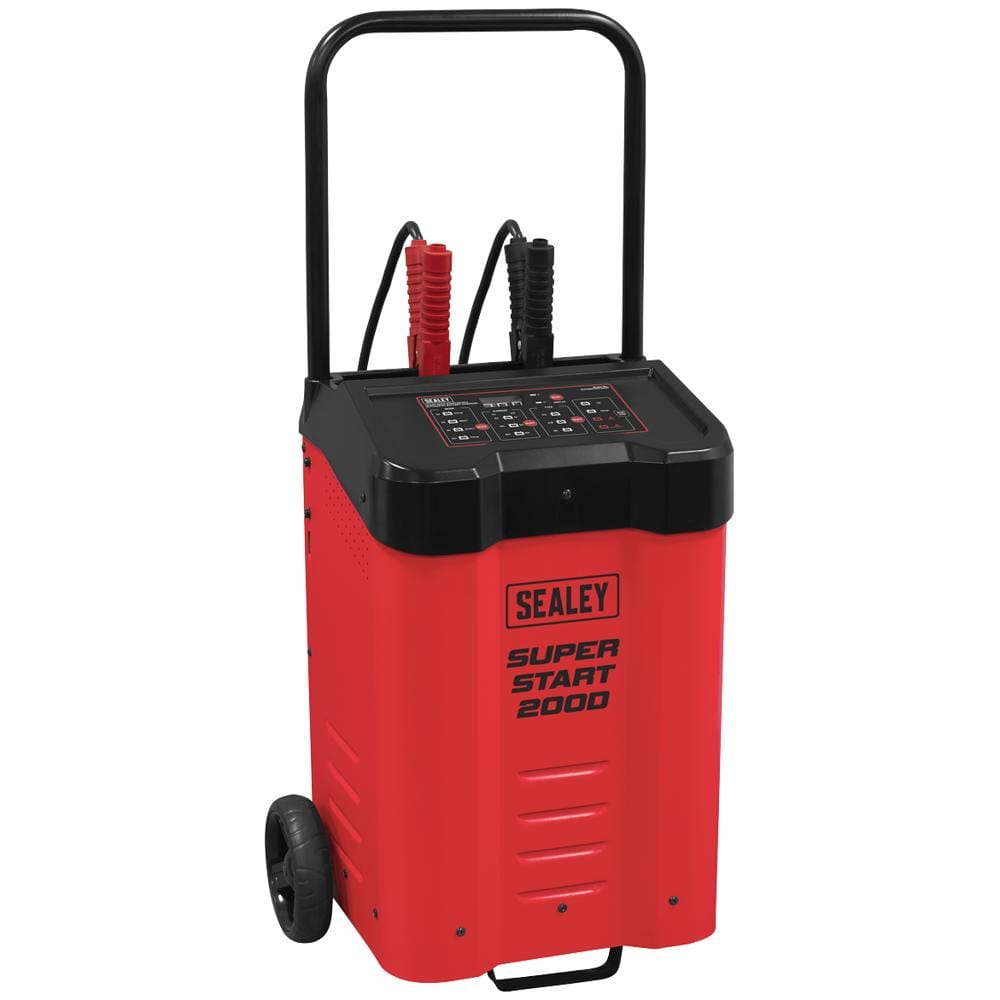

Sealey SUPERSTART200D Automatic Battery Charger Starter

The Sealey SUPERSTART200D is a professional automatic battery charger and engine starter designed for workshop use, supporting a wide range of battery types up to 600Ah.

Suitable for AGM (including stop/start), GEL, conventional Lead Acid, Lithium LiFePo4, and leisure batteries, the SUPERSTART200D features dedicated charging programmes with fully automated charging algorithms tailored to each battery chemistry. Three selectable charge rates across both 12V and 24V systems give workshop technicians precise control to suit the battery size and condition at hand.

The 200A peak engine start function makes this unit equally capable as a starter booster for 12V vehicles, delivering power in controlled 5-second bursts to protect both the battery and the unit. An intuitive digital display provides at-a-glance monitoring throughout the charge or start cycle, while built-in overcharge, short circuit, and reverse polarity protection ensure safe operation in a busy workshop environment.

Weighing 16kg and fitted with a carrying handle, the SUPERSTART200D is portable enough to move freely around the workshop. The 1.9m mains cable and 2m clamp leads provide practical reach for most vehicle positions, making it a dependable all-round charging and starting solution for professional automotive workshops.

Features and Benefits:
• Compatible with AGM, GEL, Lead Acid, Lithium LiFePo4, and leisure batteries up to 600Ah
• 200A peak engine start function (12V only) for jump-starting flat batteries
• Three charge rates on both 12V and 24V systems for flexible use
• Dedicated automated charging programmes optimised for each battery type
• Digital display for clear, real-time monitoring during charge and start cycles
• Overcharge, short circuit, and reverse polarity protection for safe workshop use
• Portable design with carry handle and 2m clamp leads for easy manoeuvrability
• High-frequency (HF) intelligent charger type for efficient charging performance

Specifications:
Brand: Sealey
Model No.: SUPERSTART200D
Output: 12V / 24V
Battery Range: 10Ah - 600Ah
Battery Types: GEL, AGM, STD (Lead Acid), Lithium LiFePo4 (12V only), Leisure
Charger Type: Intelligent High Frequency (HF)
Output Charge Peak: 60A (12V), 30A (24V)
Output Charge Rates (12V): 60A, 30A, 10A
Start Peak: 200A (12V only) — 5 seconds on, 180 seconds off
Max Charging Volts 12V — AGM: 14.7V, GEL: 14.1V, STD: 14.4V
Max Charging Volts 24V — AGM: 29.4V, GEL: 28.2V, STD: 28.8V
Max Charging Volts 12V LiFePo4: 14.5V
Supply Voltage: 230V ~ 50Hz
Supply Current: 13A (Max)
Plug Type: 3-Pin UK
Power Supply Cable Length: 1.9m
Cable & Clamp Length: 2m
Working Temperature: -10°C to 40°C
Housing Protection: IP20
Nett Weight: 16kg
