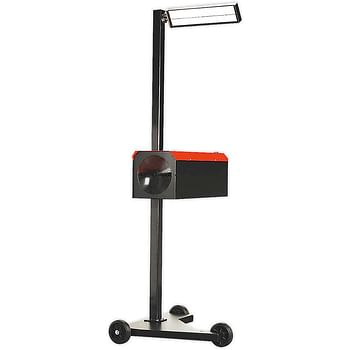

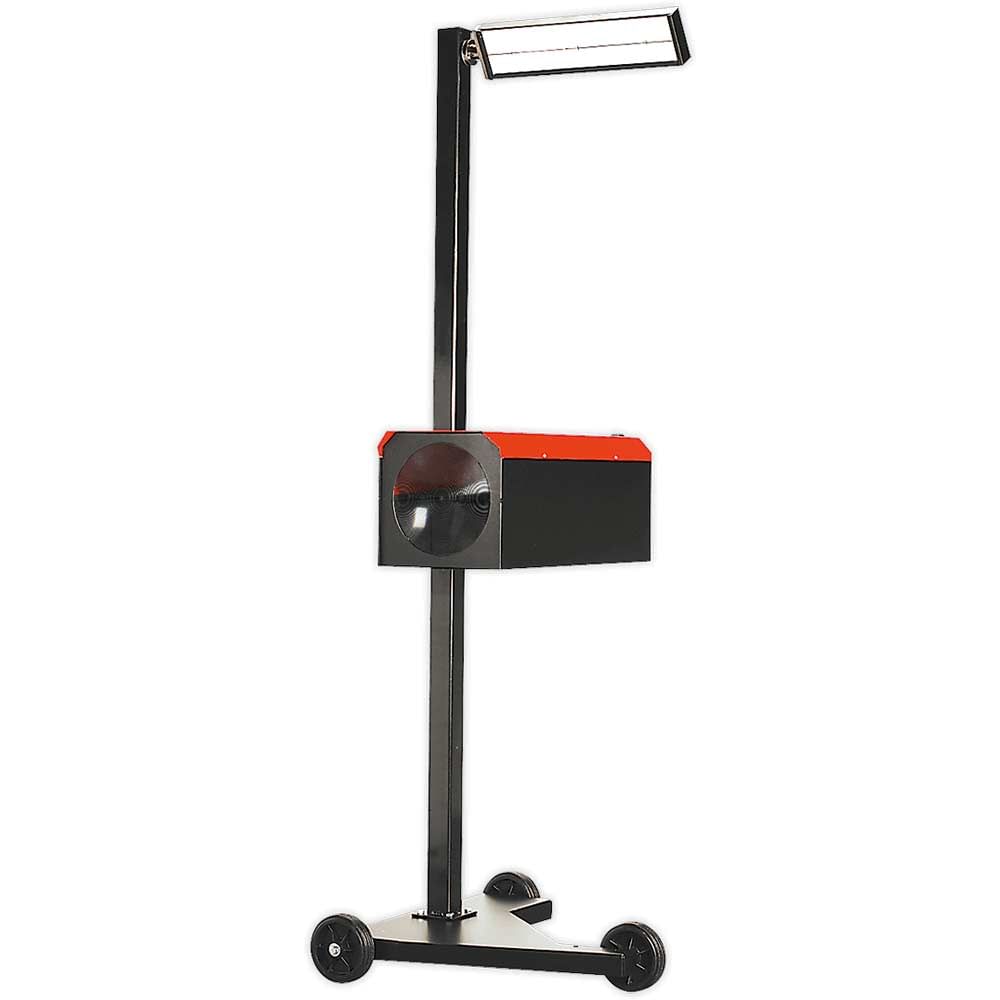

Sealey Three Wheel Headlamp Beam Setter

The Sealey Three Wheel Headlamp Beam Setter is a professional workshop tool designed for accurate headlamp alignment testing during pre-MOT inspections in garages and bodyshops. Built to deliver reliable beam measurement, this three-wheeled unit combines mobility with precision testing capabilities for cars and light commercial vehicles.

Featuring the same optical box and aiming screen technology as Sealey's MOT approved beam setter, this model provides workshop-grade accuracy for pre-test inspections. The fixed aiming screen works in conjunction with an internal analogue LUX meter to measure light intensity with precision, ensuring headlamp beams meet alignment standards.

The unit's fixed column design provides stable positioning during testing, whilst rubber wheels enable smooth movement across workshop floors between vehicle bays. With a beam measurement range from 220mm to 1500mm height, the setter accommodates various vehicle types from passenger cars to light commercials. The 500mm focal length and 1750mm overall height deliver optimal positioning for accurate alignment checks.

Features and Benefits:
• Same optical box and aiming screen as MOT approved models for reliable accuracy
• Internal analogue LUX meter for precise light intensity measurement
• Three rubber wheels provide stable mobility across workshop floors
• Fixed column design ensures consistent positioning during testing
• Accommodates beam heights from 220mm to 1500mm for varied vehicle types

Specifications:
Brand: Sealey
Focal Length: 500mm
Height: 1750mm
Length: 620mm
Max. Height Beam Measurement: 1500mm
Min. Height Beam Measurement: 220mm
Nett Weight: 24.60kg
Rail Length: n/a
Width: 660mm
