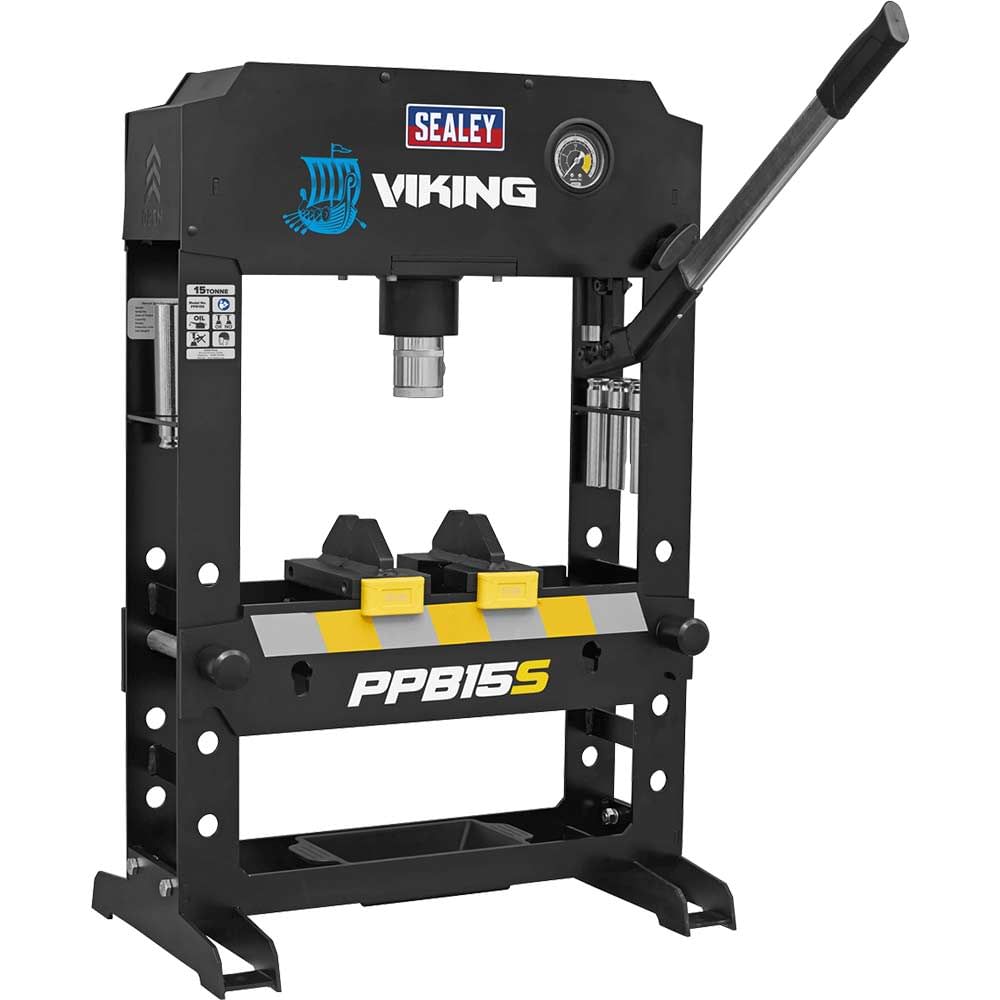

Sealey Viking Hydraulic Bench Press

The Sealey Viking Hydraulic Bench Press is a 15-tonne capacity workshop press designed for bearing removal, bushing installation, and general pressing operations. This bench-mounted hydraulic press features a heavy-duty steel frame construction with a handle-operated hydraulic pump unit, providing reliable pressing force for demanding workshop tasks.

The screw-adjustable ram offers precise control with 170mm of stroke and an additional 75mm of screw extension, whilst the adjustable work area includes a removable tray for convenient parts collection. The ram-to-table height adjusts from 55mm minimum to 347mm maximum, accommodating a wide range of workpiece sizes. A ram pressure gauge fitted to the frame head allows operators to monitor pressing force accurately during operation.

This hydraulic bench press is ideal for automotive workshops, plant maintenance facilities, and general engineering environments where regular bearing and bushing work is required. The integrated storage within the frame keeps press pins organised and readily accessible, whilst the 147mm table aperture provides clearance for through-pressing operations.

Features and Benefits:
• Heavy-duty steel frame construction for durability and stability
• Handle-operated hydraulic pump for controlled pressing force
• Ram pressure gauge for accurate force monitoring
• Screw-adjustable ram for precise height adjustment
• Adjustable work area with removable tray for parts collection
• Integrated storage for press pins within the frame
• Supplied complete with press pins, flat pressing plate, and V-blocks
• 5-year guarantee for long-term reliability

Specifications:
• Bench or Floor Mounting: Bench
• Brand: Viking
• Capacity: 15 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: n/a
• Maximum Height - Ram to Table: 347mm
• Minimum Height - Ram to Table: 55mm
• Nett Weight: 56.3kg
• Operating Table Width: 440mm
• Overall Height: 855mm
• Ram Diameter: Ø79.2mm
• Ram Stroke: 170mm
• Screw Extension: 75mm
• Table Aperture: 147mm
• Type: Bench Type
• Working Table Depth: 163mm
• Working Table Width: 565mm
• Model No. PPB15S
