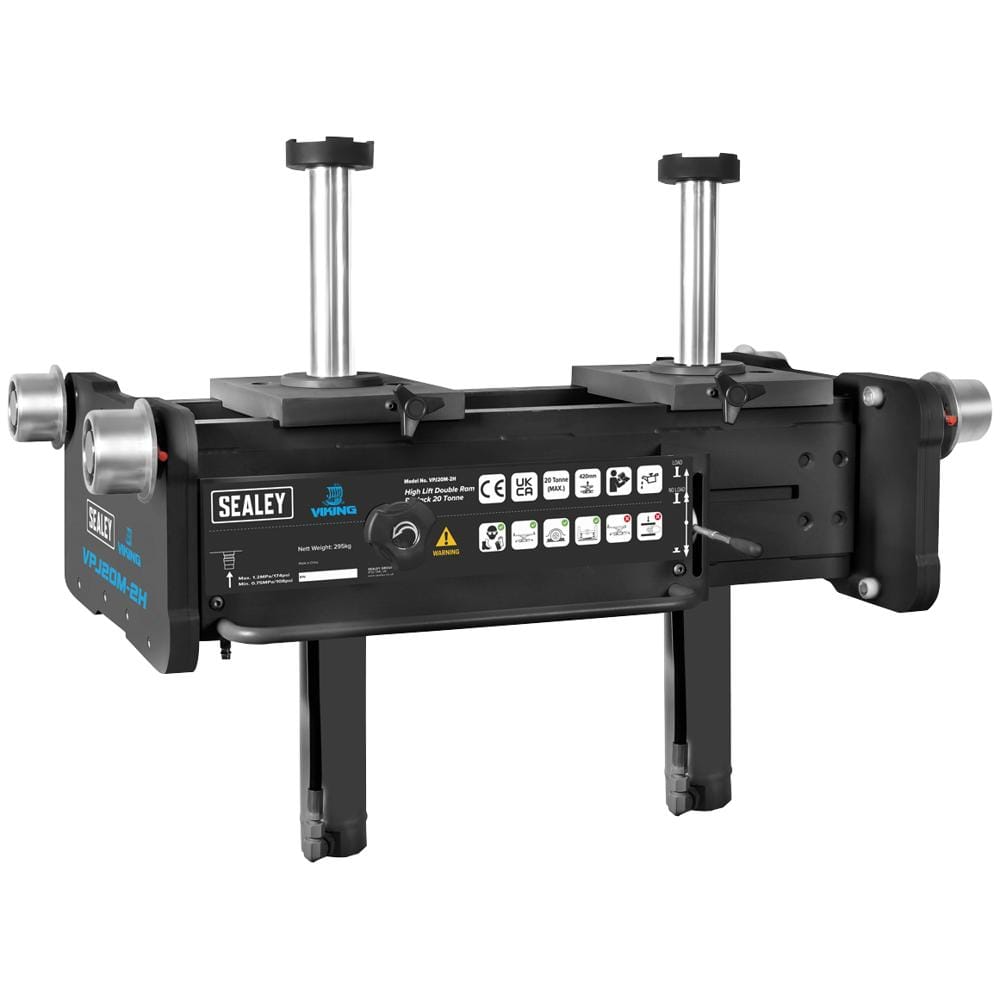

Sealey Viking VPJ20M-2H Double Ram High Lift Pit Jack

The Sealey Viking VPJ20M-2H is a professional double ram high lift pit jack designed for heavy-duty vehicle lifting in commercial workshop environments. With a substantial 20 tonne capacity and 420mm lifting stroke, this air-operated pit jack is ideally suited for servicing high-axled commercial vehicles, agricultural tractors, and heavy plant machinery where standard jacks cannot provide sufficient reach or lifting power.

Engineered for workshop pits with widths between 920-1220mm, this Viking pit jack features leaf spring support bearings that enable smooth ram traversing across the pit width. The air operation eliminates manual pumping effort when lifting heavy vehicles, whilst the innovative rocket lift feature rapidly brings the saddle into contact with the jacking point before automatically slowing under load for precise, controlled lifting.

Safety and operational control are paramount with this professional lifting equipment. Deadman controls and a limited descent control valve provide essential operator protection, whilst shut-off valves offer the flexibility to operate rams independently or together depending on the lifting task. The frame includes a large handle for easy repositioning, an integrated air coupling with water separator, and a practical spare parts tray with rubber mat insert for keeping tools and components organised during servicing work.

Features and Benefits:
• Double ram configuration with individual shut-off valves for versatile single or twin ram operation
• Leaf spring support bearings enable smooth gliding movement across the pit width
• Rocket lift technology for rapid approach followed by controlled lifting under load
• Deadman controls and limited descent valve enhance operator safety
• Air operation eliminates manual effort when lifting heavy commercial vehicles
• 420mm lifting stroke accommodates high-axled vehicles, tractors and plant machinery
• Integrated water separator protects pneumatic components from moisture damage
• Spare parts tray with rubber mat keeps tools and components secure during service work

Specifications:
• Beam Lift: 420mm
• Brand: Viking
• Capacity: 20 Tonne
• Load Arm Reach: N/A
• Nett Weight: 295kg
• Optional Accessories: VPJ20MCBA - Twin Ram Cross Beam Adaptor, VJP20M2CBA - Twin Ram Cross Beam Adaptor Extendable, VPJ-VA - V-Adaptor, VJP-UA - U-Adaptor, VPJ-A7 - Extension For Pit Jacks 100mm, VPJ-A8 - Extension For Pit Jacks 200mm, VPJ20S-2HSS - Integrated Safety Stand
• Support Arm Reach: N/A
• Max. Span: 1220mm
• Model No. VPJ20M-2H
• 3 Year Guarantee*
