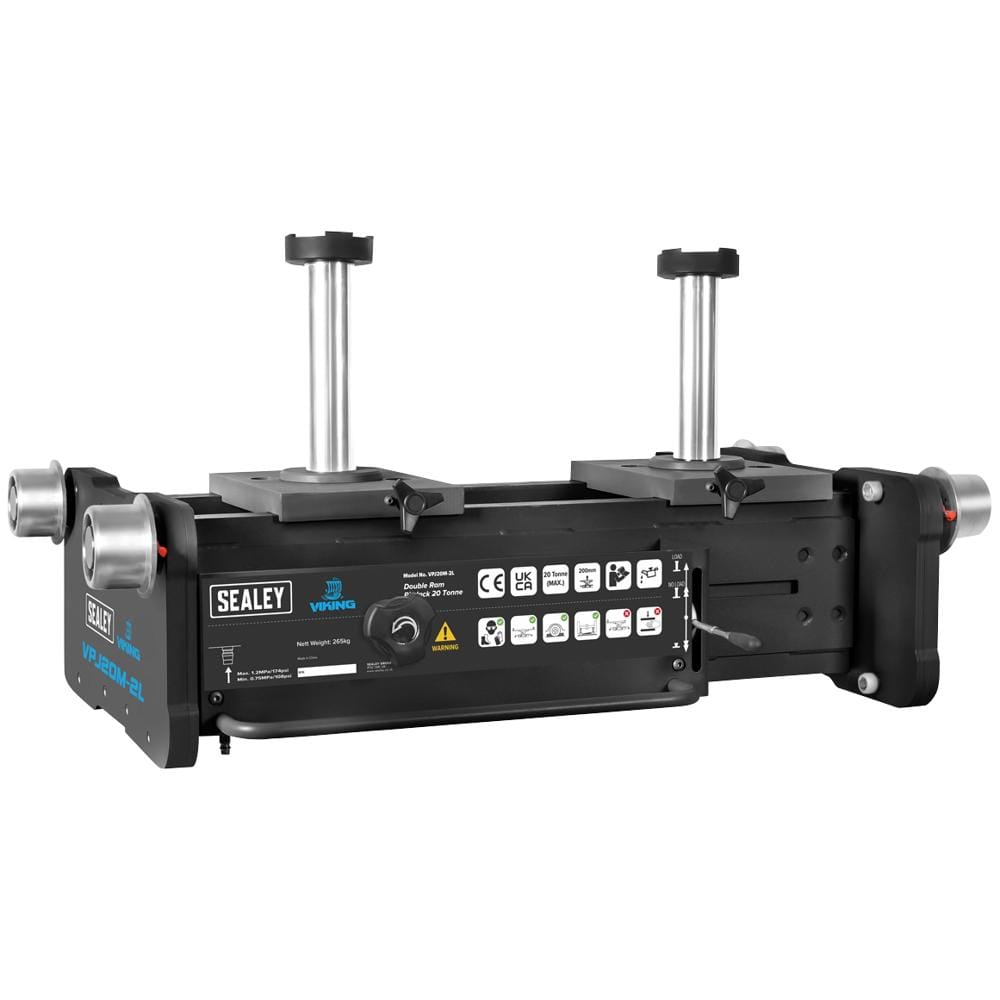

Sealey Viking VPJ20M-2L Double Ram Pit Jack

The Sealey Viking VPJ20M-2L is a professional-grade double ram pit jack designed for lifting heavy commercial vehicles, plant machinery and tractors in workshop environments. With a 20-tonne capacity and air-powered operation, this pit jack takes the physical strain out of handling heavy loads whilst delivering precise control and reliability for demanding commercial applications.

Engineered for professional vehicle workshops, this double ram pit jack features leaf spring support bearings that enable smooth transversing of the rams across the pit. The versatile shut-off valves allow operators to select twin or single ram lifting configurations depending on the specific job requirements. Air operation eliminates manual pumping effort, making this pit jack particularly effective when working with heavy plant equipment, agricultural tractors and larger commercial vehicles.

The rocket lift feature accelerates the saddle quickly to the jacking point, then automatically transitions to a slower, controlled lift once under load, improving both efficiency and safety. Fitted with deadman controls for enhanced operator safety and a limited descent control valve for controlled lowering, this pit jack meets the exacting standards required in professional workshops. The unit accommodates pit widths between 920-1220mm and includes practical features such as a large carrying handle, integrated air coupling with water separator, and a spare parts tray with rubber mat insert for keeping tools and components organised during use.

Features and Benefits:
• 20-tonne capacity suitable for heavy commercial vehicles and plant machinery
• Leaf spring support bearings ensure smooth ram transversing
• Shut-off valves enable flexible twin or single ram operation
• Rocket lift feature provides rapid contact followed by controlled lifting under load
• Deadman controls and limited descent valve enhance operational safety
• Adjustable to fit pit widths between 920-1220mm
• Air-powered operation eliminates manual pumping effort
• Integrated water separator protects air system components
• Spare parts tray with rubber mat keeps tools organised
• 3-year guarantee for professional peace of mind

Specifications:
• Beam Lift: 200mm
• Brand: Viking
• Capacity: 20 Tonne
• Load Arm Reach: N/A
• Nett Weight: 265kg
• Optional Accessories: VPJ20MCBA - Twin Ram Cross Beam Adaptor, VJP20M2CBA - Extendable Twin Ram Cross Beam Adaptor, VPJ-VA - V-Adaptor, VJP-UA - U-Adaptor, VPJ-A7 - Extension For Pit Jacks 100mm, VPJ-A8 - Extension For Pit Jacks 200mm, VPJ20S-2LSS - Integrated Safety Stand
• Support Arm Reach: N/A
• Max. Span: 960mm
• Model No. VPJ20M-2L
