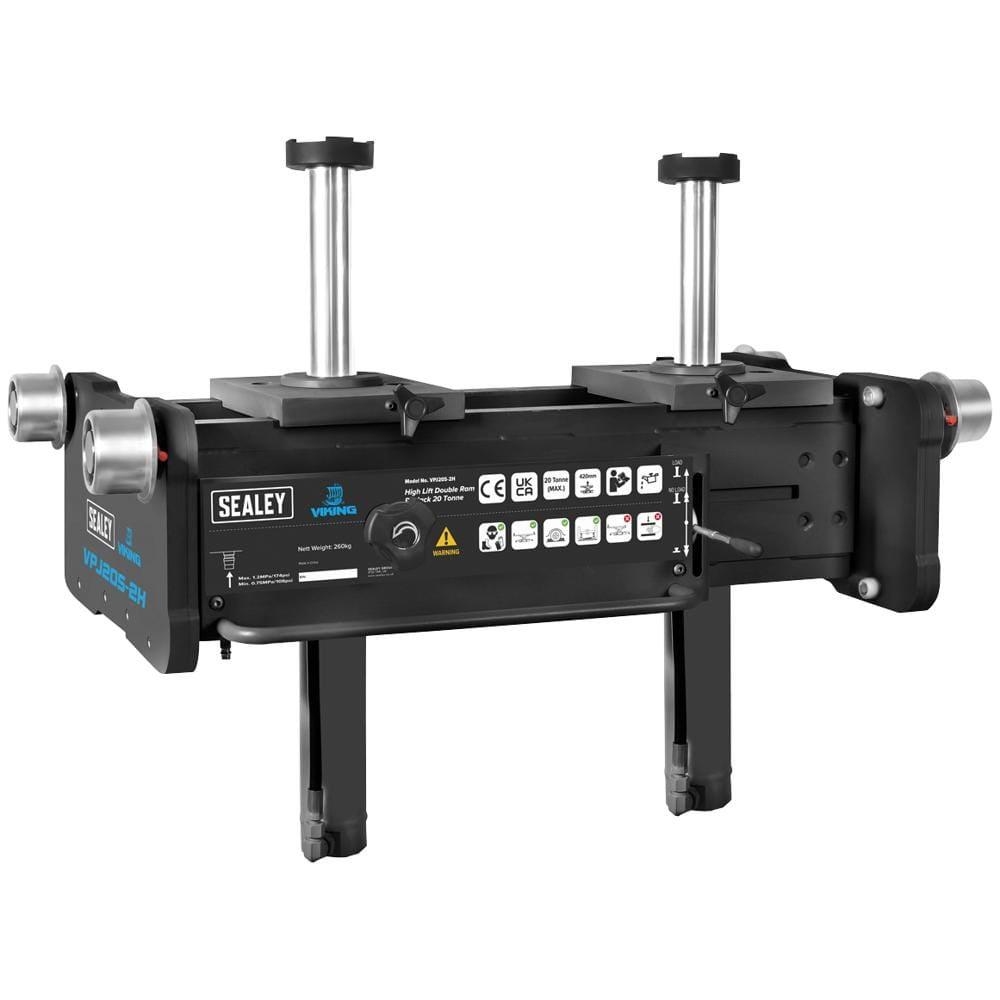

Sealey Viking VPJ20S-2H High Lift Double Ram Pit Jack

The Sealey Viking VPJ20S-2H is a professional 20-tonne double ram pit jack designed for lifting heavy commercial vehicles, plant machinery and tractors in workshop pit environments. This air-operated lifting system removes the physical effort from raising high-axled vehicles, making it ideal for garages and workshops that regularly service large commercial equipment.

Engineered with leaf spring support bearings, the jack provides smooth transversing movement across the rams for precise positioning under the vehicle. The impressive 420mm lifting stroke accommodates high ground clearance vehicles, whilst the adjustable frame suits pit widths between 680-960mm with a maximum span of 880mm, ensuring compatibility with most workshop pit configurations.

The intelligent rocket lift feature rapidly raises the saddle to meet the jacking point, then automatically slows under load for controlled, safe lifting. Shut-off valves offer the flexibility to operate both rams simultaneously or independently, depending on the lifting requirement. Safety is prioritised through deadman controls and a limited descent control valve, providing operator protection during lifting operations.

Practical workshop features include a large manoeuvring handle for easy positioning, an integrated air coupling with water separator, and a convenient spare parts tray with rubber mat insert. At 260kg, this substantial pit jack delivers the robust construction required for commercial workshop environments.

Features and Benefits:
• Air-operated system eliminates manual pumping effort on heavy vehicles
• 420mm lifting stroke suitable for high ground clearance commercial vehicles
• Twin or single ram operation via shut-off valves for flexible lifting configurations
• Rocket lift feature for quick saddle positioning with controlled lift under load
• Deadman controls and limited descent valve for enhanced operator safety
• Leaf spring support bearings ensure smooth ram traversing
• Adjustable frame fits pit widths from 680-960mm
• Integrated water separator protects air system from moisture damage
• Tool tray with rubber mat for convenient parts storage during servicing
• 3 year guarantee for long-term reliability

Specifications:
• Beam Lift: 420mm
• Brand: Viking
• Capacity: 20 Tonne
• Load Arm Reach: N/A
• Nett Weight: 260kg
• Optional Accessories: VPJ20MCBA - Twin Ram Cross Beam Adaptor, VJP20M2CBA - Twin Ram Cross Beam Adaptor Extendable, VPJ-VA - V-Adaptor, VJP-UA - U-Adaptor, VPJ-A7 - Extension For Pit Jacks 100mm, VPJ-A8 - Extension For Pit Jacks 200mm, VPJ20S-2HSS - Integrated Safety Stand
• Support Arm Reach: N/A
