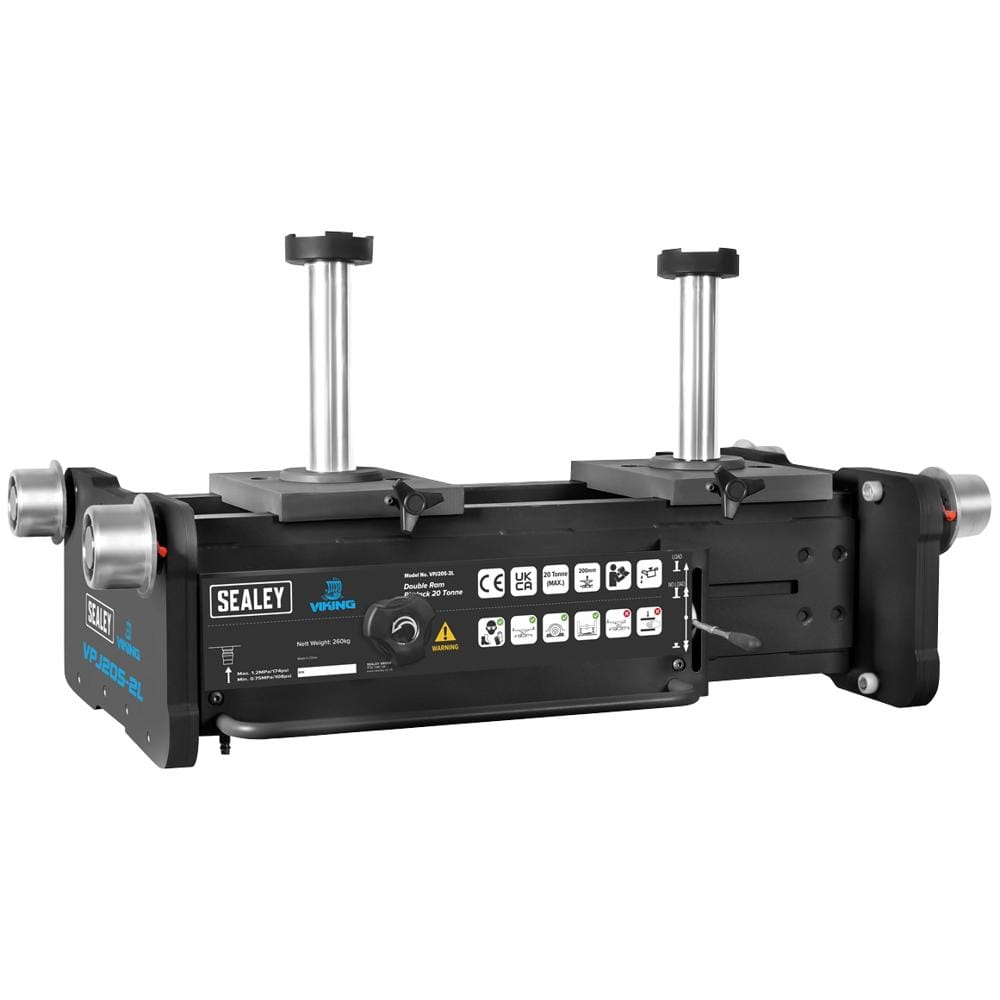

Sealey Viking VPJ20S-2L Double Ram Pit Jack

The Sealey Viking VPJ20S-2L is a professional double ram pit jack with 20 tonne capacity, designed for lifting heavy plant, tractors and commercial vehicles in workshop pit environments. This air-operated pit jack features rocket lift technology that brings the saddle into contact with the jacking point quickly, then automatically slows once under load for precise, controlled lifting.

Manufactured to suit pit widths between 680mm and 960mm, this versatile pit jack is fitted with leaf spring support bearings that enable smooth, easy gliding when traversing the ram. Independent shut-off valves provide operational flexibility, allowing you to use both rams simultaneously for maximum lifting power or select single ram operation for lighter loads.

Safety and ease of use are prioritised throughout the design. Deadman controls and a limited descent control valve ensure operator protection during lifting operations, while the integrated air coupling with water separator helps maintain consistent pneumatic performance. The frame includes a large handle for easy repositioning, plus a practical spare parts tray with rubber mat insert for keeping tools and components organised during maintenance work.

Features and Benefits:
• 20 tonne capacity suitable for heavy commercial vehicles and plant equipment
• Rocket lift feature for rapid positioning with controlled lifting under load
• Twin or single ram operation via shut-off valves for versatile lifting options
• Leaf spring support bearings enable smooth ram traversing
• Deadman controls and limited descent valve for enhanced operator safety
• Adjustable design fits pit widths from 680-960mm
• Air operation eliminates manual pumping effort
• Integrated water separator protects pneumatic components
• 200mm beam lift with 880mm maximum span
• 3 year manufacturer's guarantee

Specifications:
• Beam Lift: 200mm
• Brand: Viking
• Capacity: 20 Tonne
• Nett Weight: 230kg
• Optional Accessories: VPJ20MCBA - Twin Ram Cross Beam Adaptor, VJP20M2CBA - Twin Ram Cross Beam Adaptor Extendable, VPJ-VA - V-Adaptor, VJP-UA - U-Adaptor, VPJ-A7 - Extension For Pit Jacks 100mm, VPJ-A8 - Extension For Pit Jacks 200mm, VPJ20S-2LSS - Integrated Safety Stand
