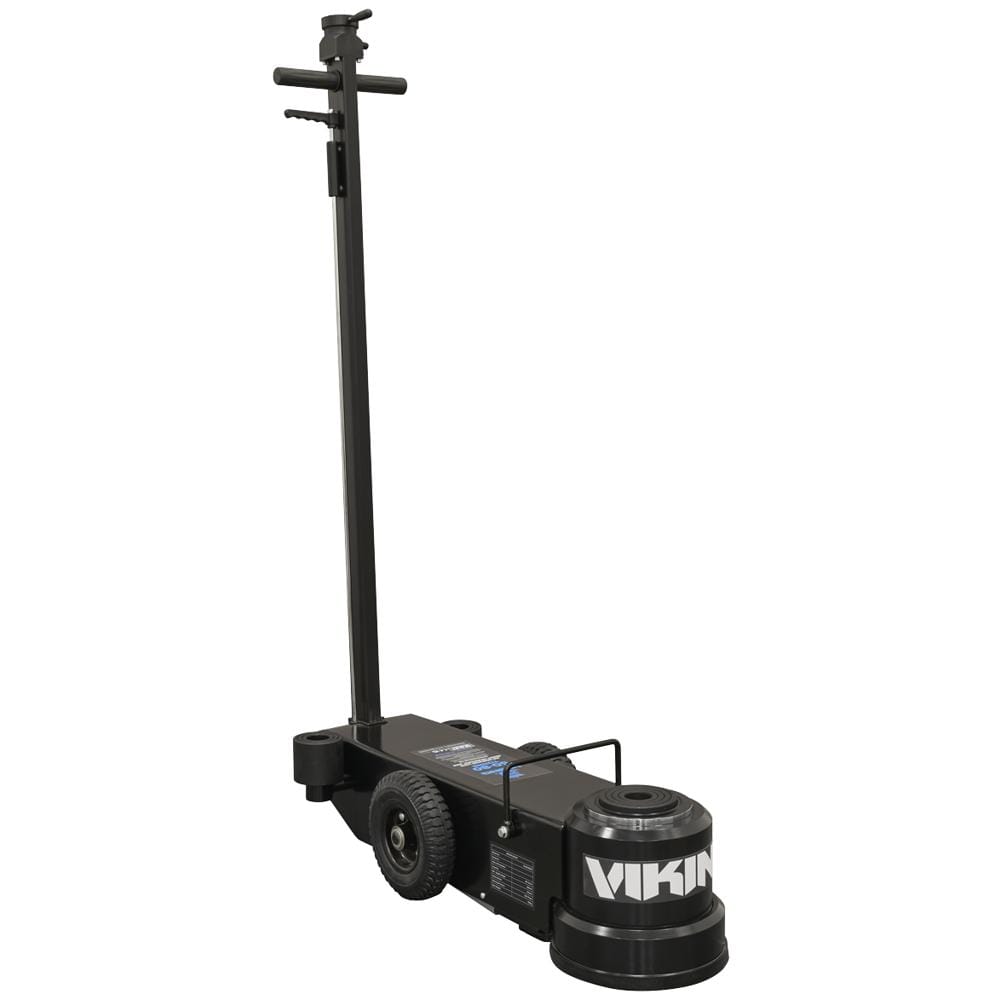

Sealey Viking YAJ50-80LR Air Operated Telescopic Long Reach Trolley Jack

The Sealey Viking YAJ50-80LR is an air operated telescopic long reach trolley jack designed for lifting heavy plant machinery, tractors and commercial vehicles in workshop or roadside environments. With an impressive 80 tonne maximum capacity, this professional-grade jack eliminates the physical effort required when working with exceptionally heavy loads, making it an essential piece of equipment for commercial vehicle workshops, agricultural operations and heavy plant maintenance.

The air operated mechanism provides smooth, controlled lifting whilst the telescopic long reach design extends to a maximum length of 2300mm, enabling access to difficult jacking points on larger vehicles and machinery. The dead man's handle safety feature ensures the jack cannot be accidentally lowered, whilst also allowing precise control during the lowering process – a critical safety consideration when working beneath heavy loads.

This jack offers two lifting stages with different capacities: stage one provides the full 80 tonne capacity up to a maximum height of 461mm (including extensions), whilst stage two reduces to 50 tonne capacity but extends to a maximum height of 563mm. The minimum saddle height of 230mm provides good ground clearance for most applications. Supplied extensions of 45mm and 75mm close the gap between the jack saddle and the vehicle jacking point, ensuring secure contact and safer lifting operations.

Features and Benefits:
• Air operated mechanism eliminates manual pumping effort when lifting heavy loads
• Dead man's handle provides enhanced safety and controlled lowering speed
• Telescopic long reach design extends to 2300mm for access to difficult jacking points
• Dual capacity stages offer flexibility – 80 tonne at lower heights or 50 tonne extended
• Includes 45mm and 75mm extensions for secure connection to jacking points

Specifications:
• Brand: Viking
• Capacity: 80 Tonne
• Chassis Length: 930mm
• Extensions: 45/75mm
• Maximum Air Pressure: 174psi
• Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 461/80
• Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): 563/50
• Maximum Length: 2300mm
• Minimum Saddle Height: 230mm
• Nett Weight: 105kg
• Overall Width: 342mm
• Piston Stroke: 213mm
• Screw Extension: N/A
• Width without Wheels: 254mm
• Working Pressure: 130-174psi
• Max. Height (inc. extn.): 563mm @ 50 Tonne, 461mm @ 80 Tonne
• Air Consumption: 10.5cfm
