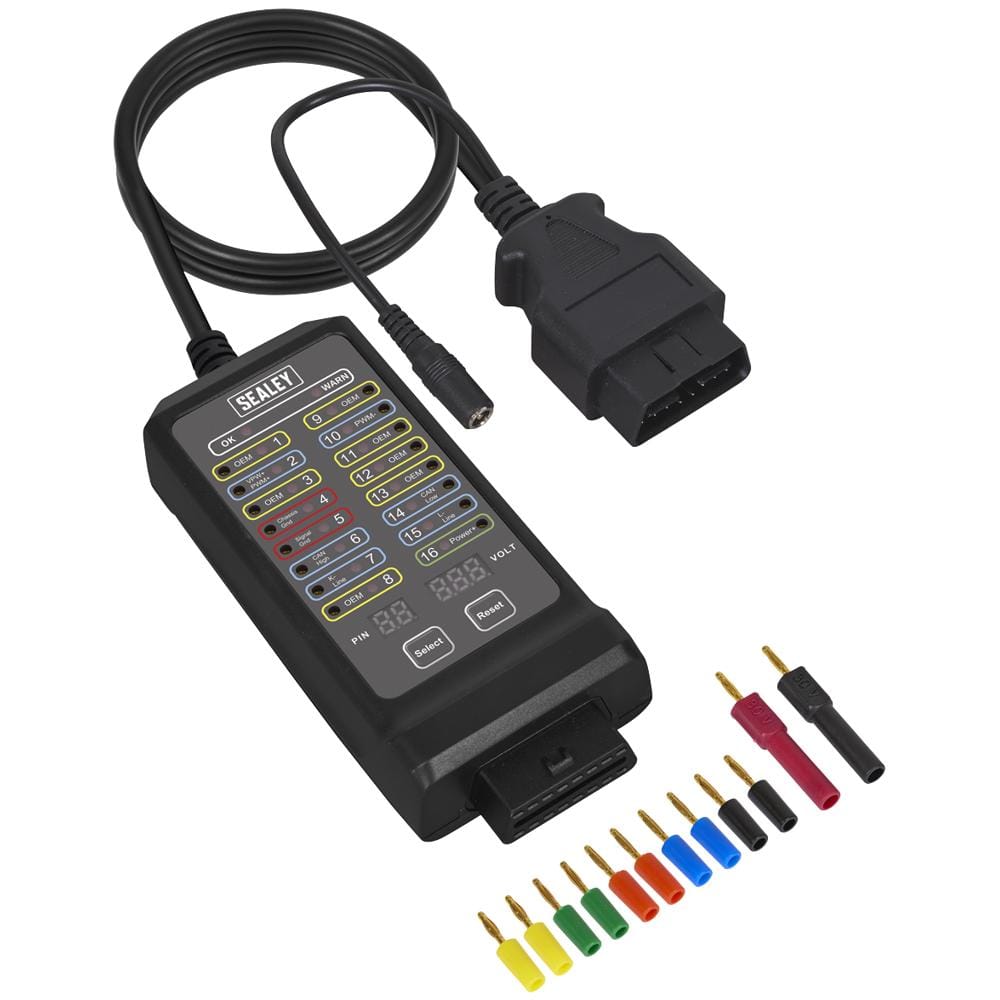

Sealey VS8813 16 Pin OBD Breakout Box

The Sealey VS8813 is a 16-pin OBD breakout box designed to test on-board diagnostics ports for faults before connecting diagnostic equipment to the vehicle's data link connector. This professional diagnostic tool allows automotive technicians and mechanics to verify the integrity of OBDII/EOBDII connections, protecting expensive diagnostic equipment from potential damage caused by faulty vehicle circuits.

Designed to be connected in series with 16-pin OBDII/EOBDII diagnostic equipment, the breakout box is compatible with both 12V and 24V vehicle systems, making it suitable for cars, vans, and commercial vehicles. The unit can also interface with multimeters and oscilloscopes, providing comprehensive diagnostic capabilities for fault-finding and circuit testing.

The selectable pin voltage indicator displays real-time voltage readings for individual pins with 0.1V resolution, allowing precise monitoring of diagnostic port signals. Communication protocol indicators cover all major automotive bus systems including CAN H (Pin 6), CAN L (Pin 14), VPW+/PWM+ (Pin 2), PWM- (Pin 10), K_LINE (Pin 7), and L_LINE (Pin 15). Built-in overload and reverse polarity protection safeguards both the breakout box and any connected diagnostic equipment from electrical damage during testing.

Features and Benefits:
• Real-time voltage monitoring with selectable pin voltage indicator
• Compatible with 12V and 24V vehicle systems for versatile applications
• Overload and reverse polarity protection prevents equipment damage
• Communication protocol indicators for all major automotive bus systems
• Wide input voltage range (9-32V DC) accommodates various vehicle electrical systems
• Compact and lightweight (0.24kg) for easy workshop portability

Specifications:
Brand: Sealey
Nett Weight: 0.24kg
Input Voltage DC: 9-32V
Maximum Load: 2.0A
Resolution: 0.1V
Overload Protection: Yes
Reverse Polarity Protection: Yes
Operating Temperature: 0?-50?
