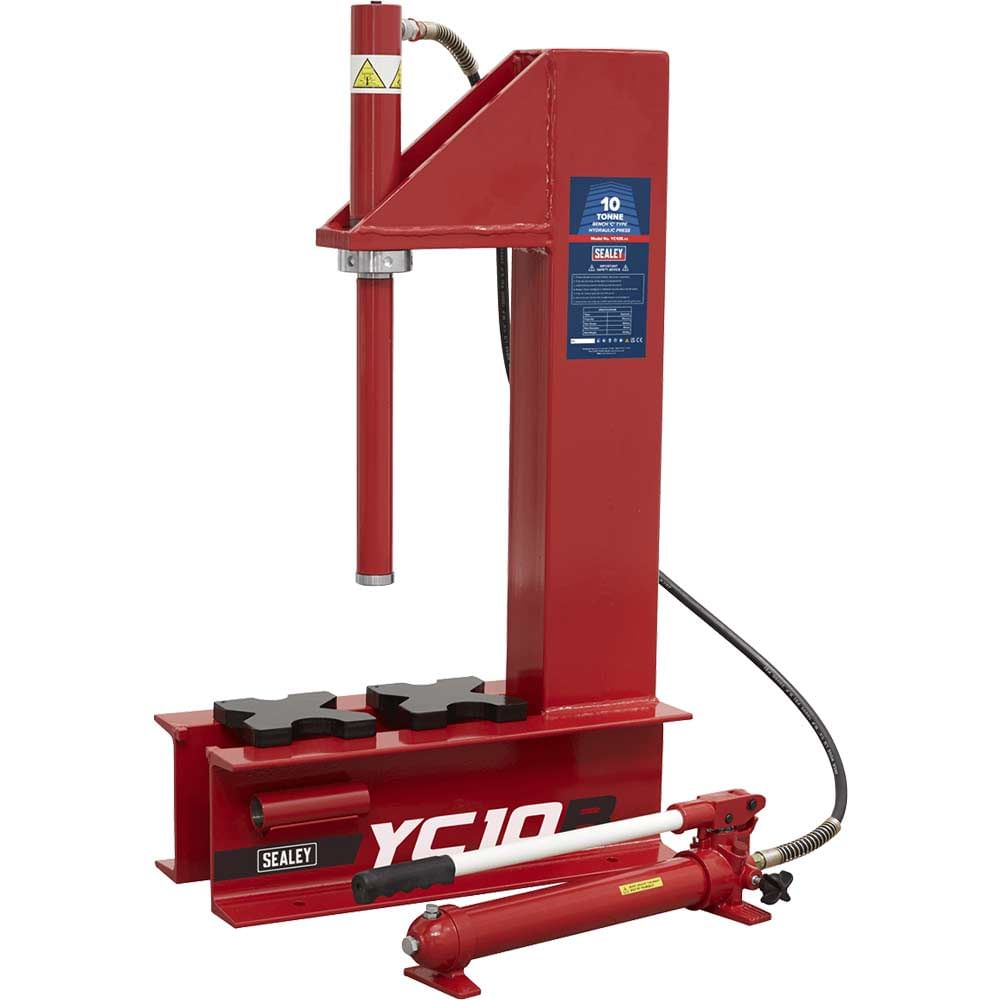

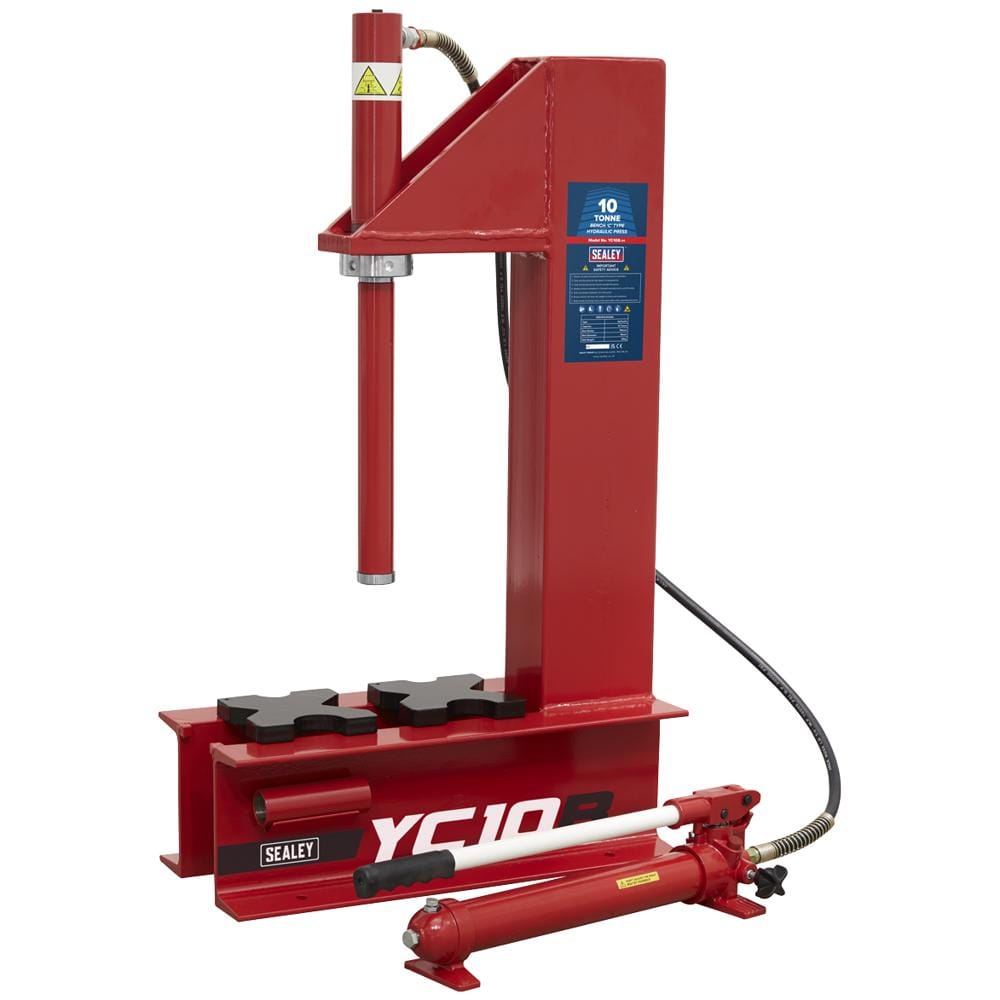

Sealey YC10B Hydraulic C Type Bench Press

The Sealey YC10B is a 10-tonne hydraulic C-type bench press designed for pressing, bending and extruding applications in automotive and industrial workshops. This high-quality industrial press features a distinctive C-frame design that provides open access to the working area from three sides, making it exceptionally versatile for loading and unloading wide or irregular workpieces that wouldn't fit in a traditional closed-frame press.

The detachable hydraulic pump and ram system offers excellent flexibility, allowing the hydraulic components to be used independently for other tasks when the press frame is not required. This modular design makes efficient use of workshop resources and enhances the overall value of the equipment. The press accommodates workpieces with a working height range from 150mm to 450mm, with a ram stroke of 130mm and a 100mm table aperture for through-work capability.

Supplied complete with flat pressing plates and extension tubes as standard, the YC10B is ready for immediate use across a range of tasks including bearing installation, component straightening, shaft work and general fabrication duties. The substantial 60kg construction ensures stability during operation, whilst the bench-mounting configuration saves valuable floor space in the workshop.

Features and Benefits:
• C-frame design allows three-sided access for oversized or irregular workpieces
• Detachable pump and ram for use on other hydraulic tasks when press not required
• 100mm table aperture accommodates through-work applications
• Supplied with pressing plates and extension tubes for versatile operation
• 10-tonne capacity suitable for demanding automotive and industrial work

Specifications:
• Bench or Floor Mounting: Bench
• Brand: Sealey
• Capacity: 10 Tonne
• Gauge Included: No
• Lateral Ram Travel: 0
• Maximum Height - Ram to Table: 450mm
• Minimum Height - Ram to Table: 150mm
• Nett Weight: 60kg
• Optional Accessories: n/a
• Overall Height: 960mm
• Ram Diameter: Ø40mm
• Ram Stroke: 130mm
• Table Aperture: 100mm
• Type: Hydraulic
• Working Table Depth: 240mm
