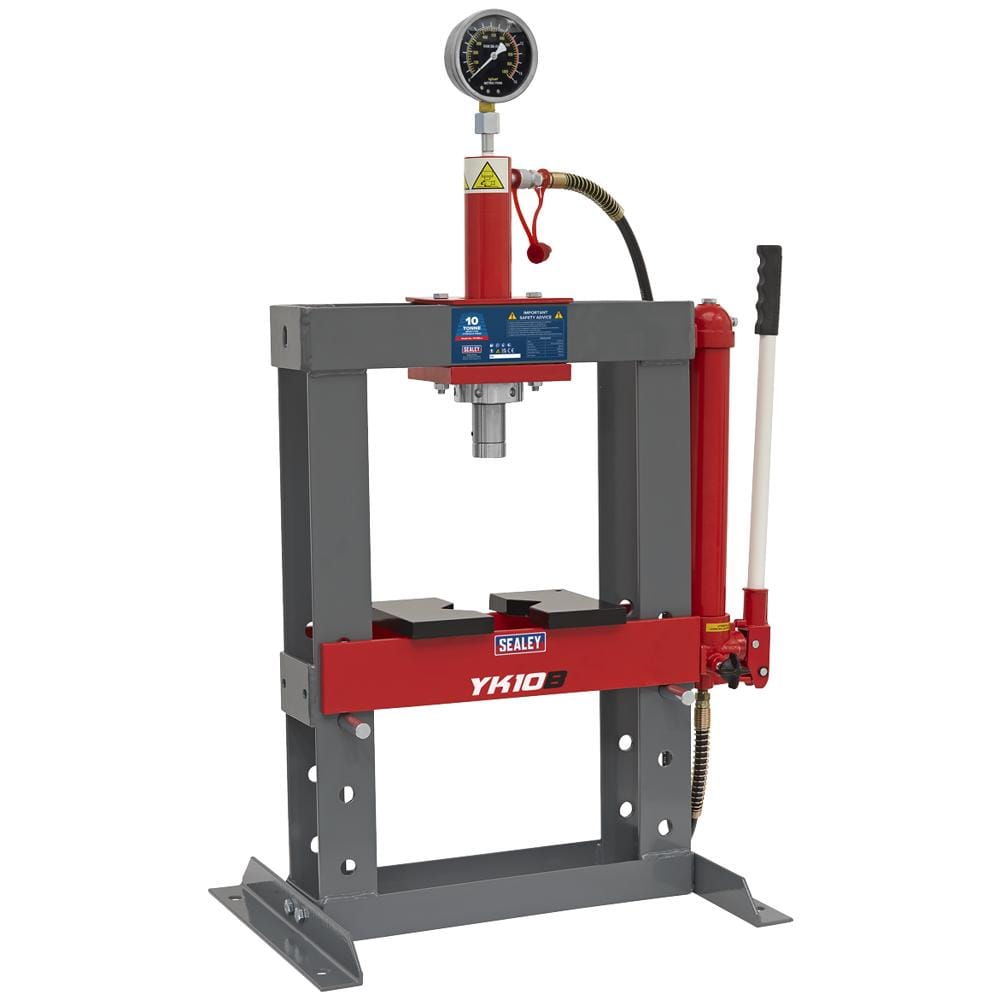

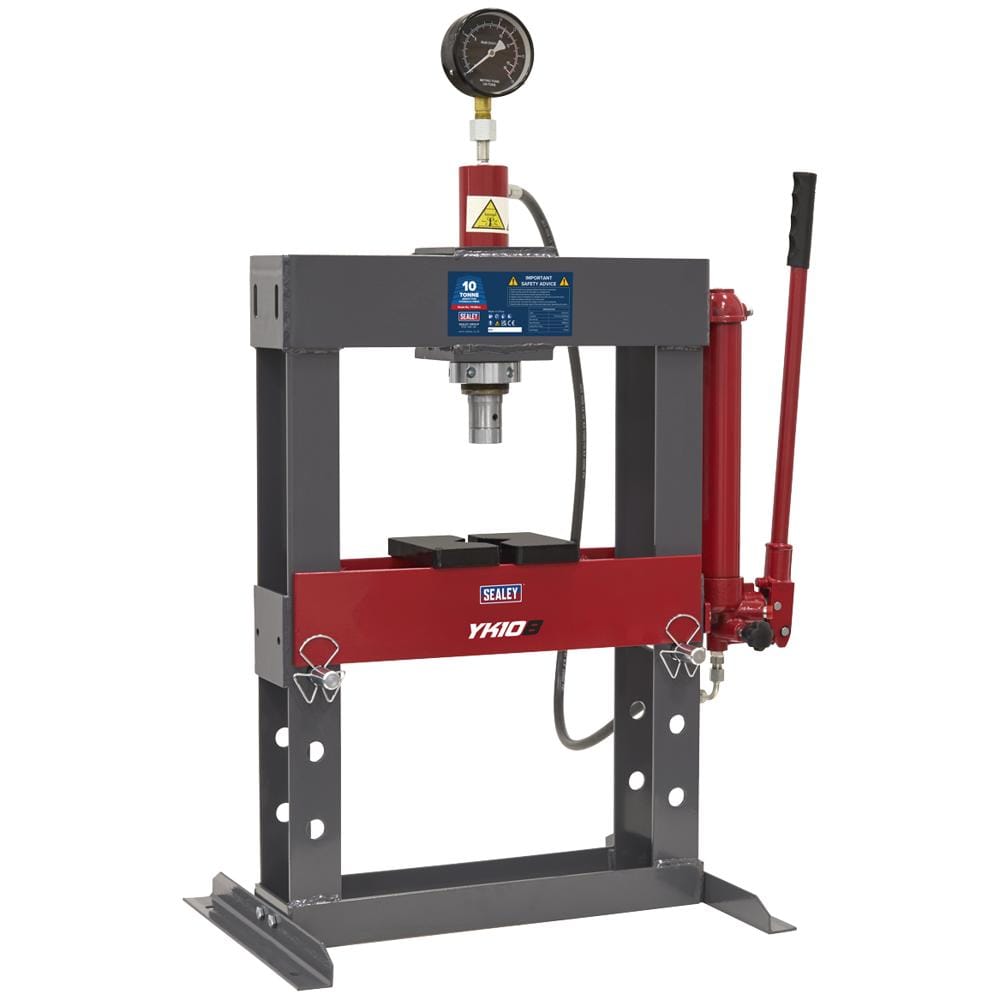

Sealey YK10B Bench Type Hydraulic Press

The Sealey YK10B is a bench-mounted 10 tonne hydraulic press designed for pressing, bending and extruding applications in automotive and industrial workshops. Built to industrial standards, this versatile press combines robust construction with practical features including an integrated pressure gauge for accurate monitoring during operation.

With a 48kg nett weight, this press provides a stable working platform whilst remaining manageable for bench mounting. The 340mm working table width and 115mm table aperture accommodate a variety of workpieces, whilst the ram offers 180mm of stroke with a lateral travel of 190mm. The adjustable height range from 110mm to 365mm (ram to table) enables flexibility across different pressing tasks.

Ideal for bearing removal and installation, bush pressing, and metal forming operations, this hydraulic press suits automotive workshops, fabrication shops and maintenance facilities. The Ø40mm ram diameter delivers concentrated pressure precisely where needed, making it effective for both delicate component work and heavy-duty industrial applications. The 1060mm overall height provides ergonomic operation whilst maintaining a compact footprint suitable for bench installation.

Features and Benefits:
• Integrated pressure gauge for accurate force monitoring during operation
• 10 tonne capacity suitable for demanding automotive and industrial tasks
• Adjustable working height from 110mm to 365mm accommodates various workpiece sizes
• 180mm ram stroke with 190mm lateral travel for versatile positioning
• Bench-mountable design with 48kg nett weight for stable operation

Specifications:
Bench or Floor Mounting: Bench
Brand: Sealey
Capacity: 10 Tonne
Gauge Included: Yes
Lateral Ram Travel: 190mm
Maximum Height - Ram to Table: 365mm
Minimum Height - Ram to Table: 110mm
Nett Weight: 48.0kg
Operating Table Width: 340mm
Optional Accessories: n/a
Overall Height: 1060mm
Ram Diameter: Ø40mm
Ram Stroke: 180mm
Table Aperture: 115mm
Type: Hydraulic
Working Table Depth: 80mm
Working Table Width: 340mm
