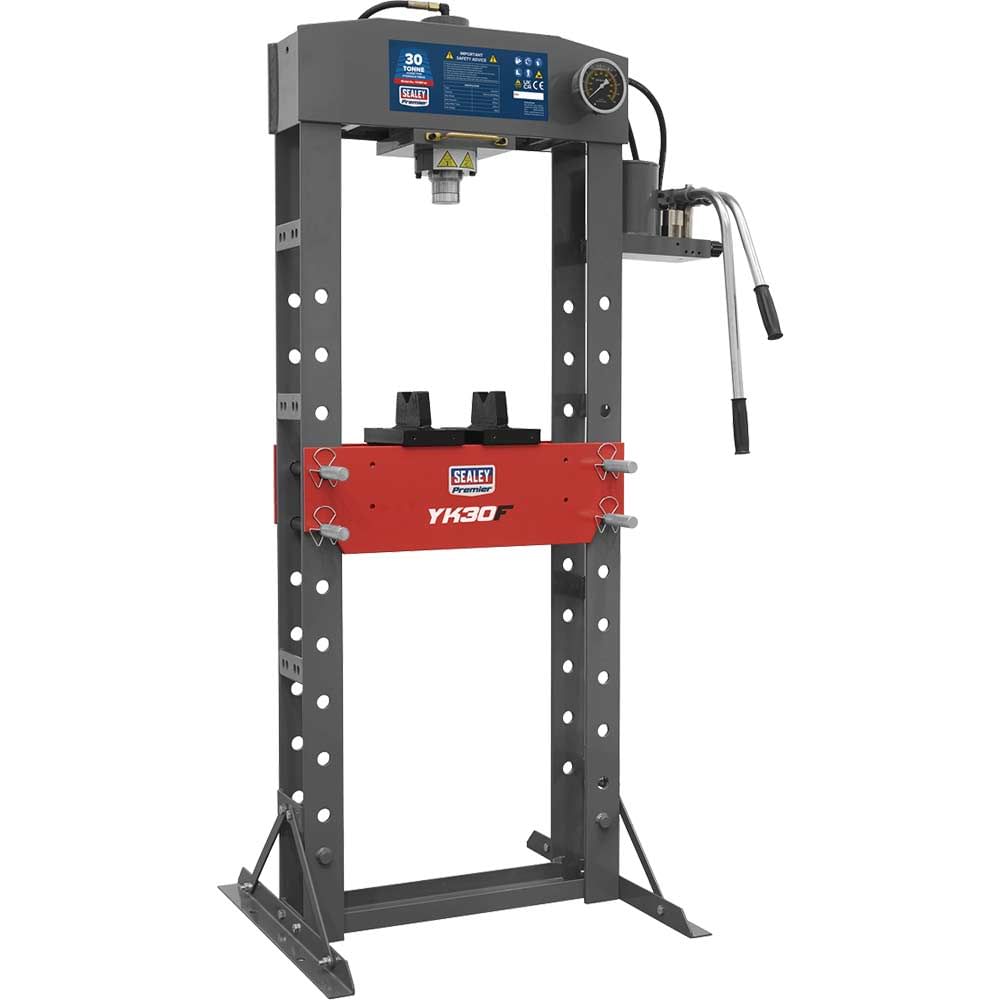

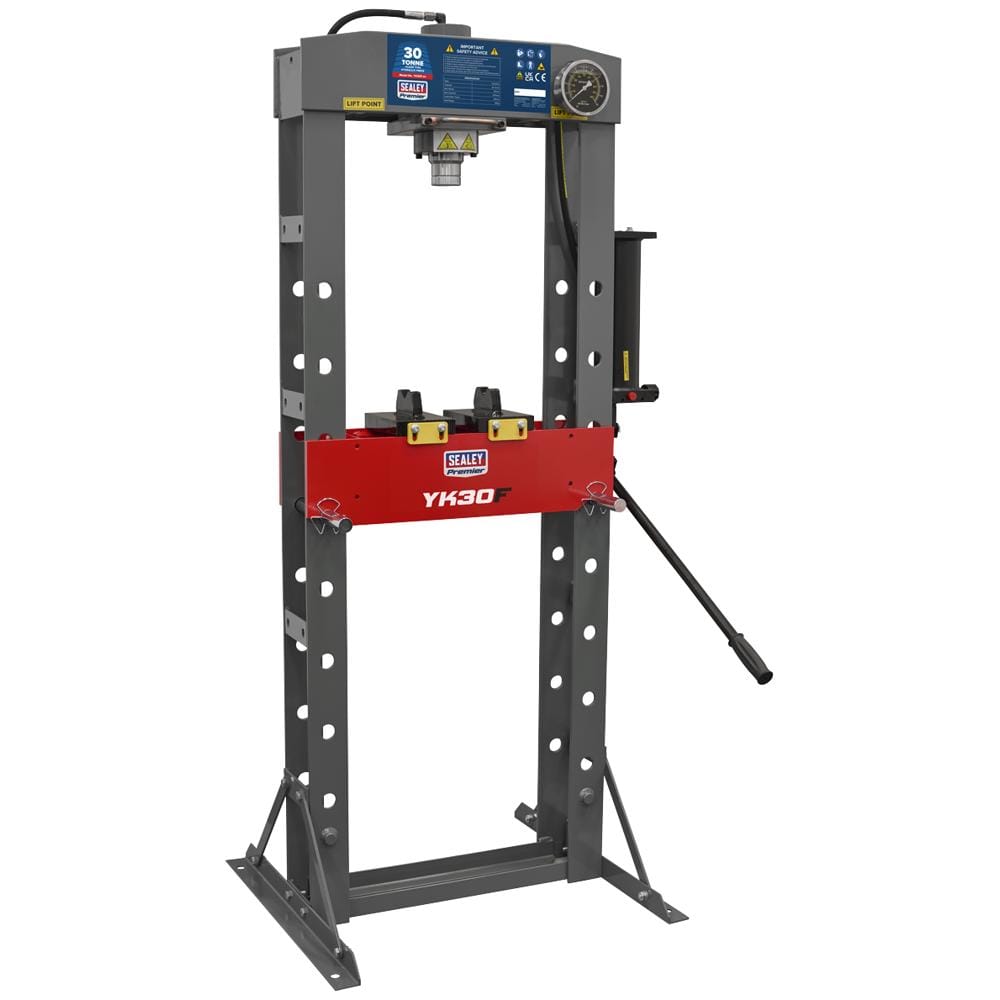

Sealey YK30F Floor Type Hydraulic Press

The Sealey YK30F is a 30-tonne floor-mounted hydraulic press designed for heavy-duty workshop applications. Built with robust steel frame construction, this hydraulic press features a 2-speed hydraulic pump unit that delivers efficient operation for a wide range of pressing, bearing removal, and assembly tasks.

A standout feature of this press is its sliding hydraulic ram assembly, which provides 200mm of lateral travel to accommodate off-centre pressing applications where standard fixed-ram presses would struggle. The frame head is fitted with a ram pressure gauge, allowing precise monitoring of applied force during operation. With a ram stroke of 150mm and working height range from 55mm to 1035mm, the YK30F offers excellent versatility for various component sizes.

The press is supplied complete with flat pressing plate and V-blocks, providing the essential accessories needed to tackle common workshop tasks straight from delivery. The substantial working table measures 650mm wide by 172mm deep with a 152mm aperture, offering ample space for positioning components. Ideal for automotive workshops, engineering facilities, and maintenance departments handling bearing installation, bushing removal, shaft straightening, and general pressing operations.

Features and Benefits:
• 2-speed hydraulic pump for efficient operation and precise control
• 200mm lateral ram travel enables off-centre pressing applications
• Integrated pressure gauge for accurate force monitoring
• Supplied with flat pressing plate and V-blocks for immediate use
• Robust steel construction with 130kg weight ensures stability during operation
• Backed by 5-year guarantee for long-term reliability

Specifications:
• Bench or Floor Mounting: Floor
• Brand: Premier
• Capacity: 30 Tonne
• Gauge Included: Yes
• Lateral Ram Travel: 190mm
• Maximum Height - Ram to Table: 1035mm
• Minimum Height - Ram to Table: 55mm
• Nett Weight: 130kg
• Operating Table Width: 490mm
• Optional Accessories: YKSG20 - Safety Guard, YKPP8 - Press Pin Set
• Overall Height: 1775mm
• Ram Diameter: Ø70mm
• Ram Stroke: 150mm
• Screw Extension: N/A
• Table Aperture: 152mm
• Type: Hydraulic
• Working Table Depth: 172mm
• Working Table Width: 650mm

*This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
Model No. YK30F
