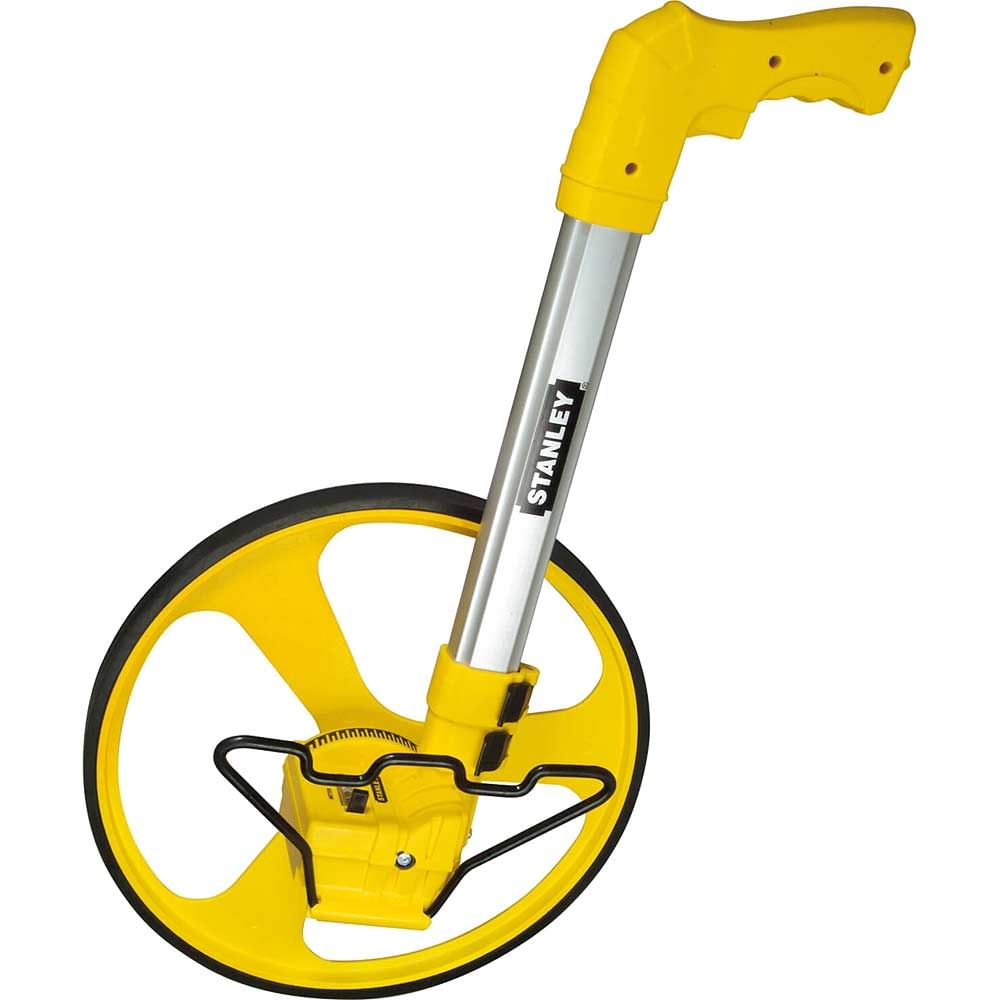

Stanley Road and Track Measuring Wheel

The Stanley Road and Track Measuring Wheel is a professional-grade distance measuring tool designed for accurate surveying on exterior surfaces and rough terrain. Ideal for contractors, surveyors, and groundworkers who need to measure large distances quickly and reliably outdoors.

This gear-driven measuring wheel features a robust 318mm diameter die-cast aluminium wheel with a wear-resistant rubber tread, making it well-suited for use on uneven ground and outdoor sites. The tough plastic housing protects the 5-digit counter mechanism, which displays measurements in metres and tenths of a metre up to a maximum distance of 9999.99 metres. A manual reset button allows for quick zeroing between measurements.

Built for durability and user comfort, the measuring wheel is equipped with a heavy-duty metal folding handle with a rubber grip for secure handling during extended use. The folding wheel mount enables compact storage and transportation. With a working accuracy of ±1% typically, this measuring wheel delivers reliable results for site surveying, roadwork planning, and track measurement applications.

The unit is supplied complete with a carry bag and instruction manual for convenient storage and transport between job sites.

Features and Benefits:
• Large 318mm wheel diameter for easier operation on rough and uneven surfaces
• Die-cast aluminium wheel construction with wear-resistant rubber tread for long service life
• Folding handle and wheel mount for compact storage and portability
• 5-digit counter with manual reset for quick measurement sequences
• Gear-driven mechanism in protective housing for reliable accuracy

Specifications:
Wheel Diameter (mm): 318
Metric/Imperial: Metric
Max. Distance: 9999.99 Metres
Working Environment: Built for exterior use, larger wheel for rougher ground
Working Accuracy: ± 1% Typically
Units of Measurement: Metres and Tenths of a Metre
