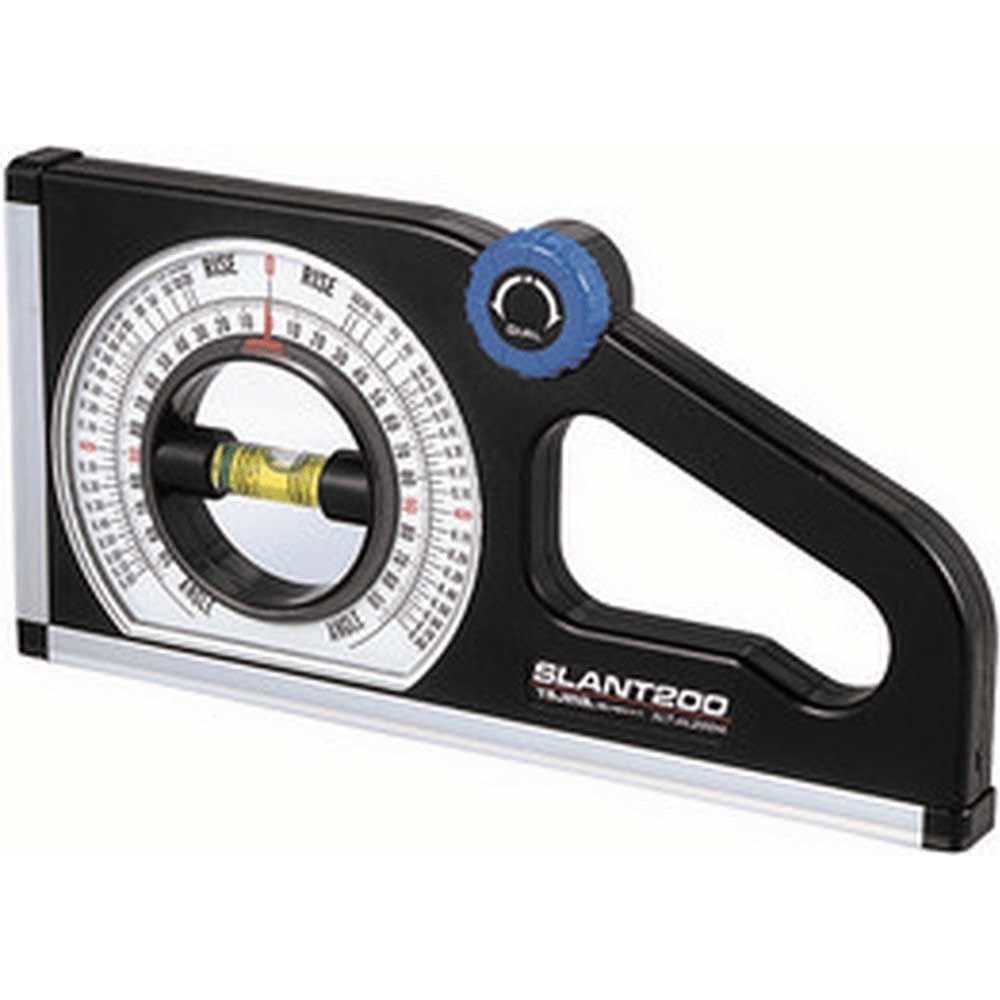

Tajima Slant AL200 Rotating Dual Scale Angle Meter

The Tajima Slant AL200 is a rotary angle meter which is designed to provide an easy way to measure the angles of slopes and inclines with one hand. It is equipped with a durable, lightweight aluminium frame and a magnet for affixing to metallic surfaces.

To Measure an Angle or Pitch:

1. Place the bottom of the pitch / angle meter flush with the surface to be measured.

2. Rotate the thumb-screw knob until the bubble in the vial is centered between the alignment lines then read the angle or pitch calibration mark at the index pointer.

3. Invert the pitch / angle meter to measure a downward slope.

To Set an Angle or Pitch:

1. Rotate the thumb screw knob until the index pointer is positioned at the desired angle or pitch calibration mark.

2. Place the bottom of the pitch / angle meter flush with the surface to be set.

3. Rotate together until the bubble in the vial is centered between the alignment lines.

Specifications
• Measurement Range: 0° - 130°
• Accuracy: +/- 1°
• Dimensions: 250mm x 124mm x 24mm
• Weight: 300g

Features and Benefits
• Rotating dual-scale angle meter to single-handedly measure, set, or replicate a pitch or angle
• Durable aluminum frame
• Magnet on bottom allows for hands-free use with compatible surfaces
