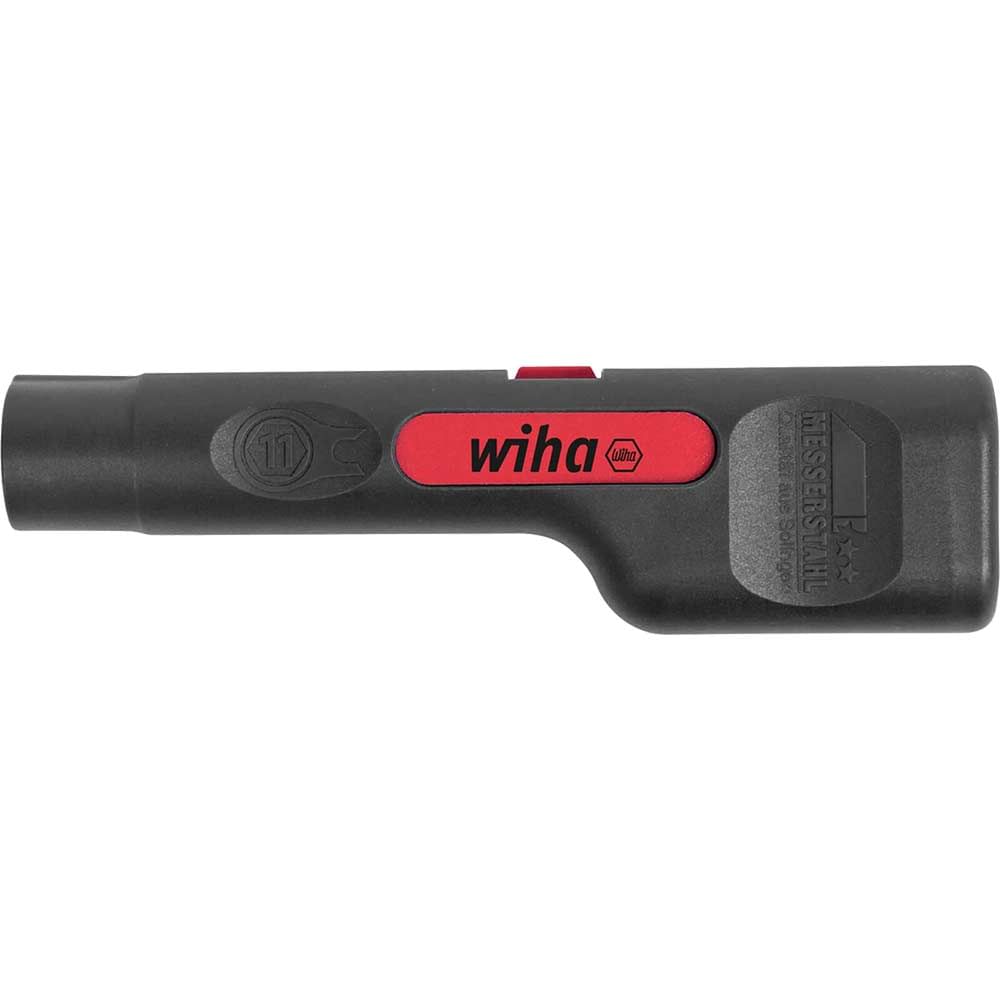

Wiha Stripping and Assembly Tool for Coaxial Cable

The Wiha Stripping and Assembly Tool is a professional coaxial cable preparation tool designed for efficient installation of F-screw connectors. This compact multi-function tool combines stripping, gripping and assembly capabilities in a single 125mm design, making it ideal for aerial installers, satellite technicians and communications engineers working with coaxial cables.

Suitable for processing coaxial cables with outer diameters between 6mm and 8mm, this tool features dual pairs of opposing blades that strip cables precisely in a single operation through multiple rotary movements. The pre-adjusted stripping dimensions are calibrated for common F-screw connectors, eliminating the need for manual measurement and ensuring consistent results on site.

Beyond cable stripping, the integrated gripping jaws allow you to screw F-connectors directly onto prepared cables, whilst the built-in SW11 open hexagon facilitates final assembly or removal of F-connectors. This hex configuration provides excellent accessibility in confined work environments where space is limited. A convenient locking slide secures the tool in a closed position for safe storage in toolboxes or work bags.

Features and Benefits:
• All-in-one design combines stripping, gripping and assembly functions
• Pre-adjusted stripping dimensions for common F-connectors
• Dual blade pairs enable quick, precise stripping in one work step
• SW11 hexagon offers excellent access in tight spaces
• Locking slide for safe, compact storage

Specifications:
Plier Type: Stripping
Overall Length: 125mm
Area Stripped (Min.-Max.): 6-8mm
Hex Head: 11.0
