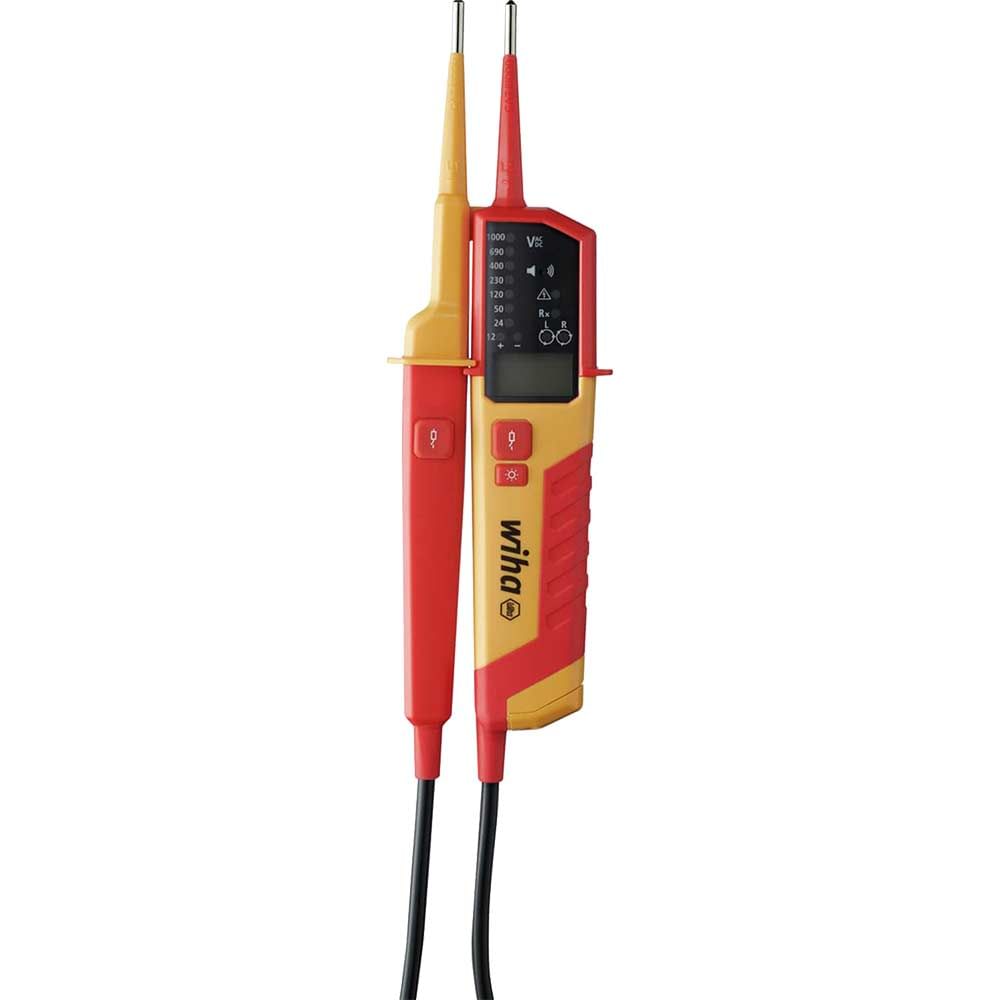

Wiha Voltage And Continuity Tester 0.5-1000 V AC

The Wiha Voltage and Continuity Tester is a professional-grade electrical testing instrument designed for accurate voltage detection, continuity checks, and comprehensive electrical diagnostics across AC and DC systems. Ideal for electricians and electrical contractors working on building installations and low-voltage systems, this tester combines multiple testing functions in a single, robust tool.

This German-engineered tester offers an impressive range from 0.5 to 1000 V AC and up to 1500 V DC, with automatic polarity detection and optical rotational field testing capabilities. The large backlit LCD display and LED indicators ensure measurement results are clearly visible even in poorly lit environments, whilst an audible signal confirms current flow during continuity testing.

The integrated spacer allows convenient single-handed testing on sockets, whilst the dual-button activation on both test tip handles enables functional testing of RCD (FI) protective switches. An integrated flashlight provides additional illumination for work in cabinets, loft spaces, and other dimly lit locations where electricians frequently operate.

Built to CAT III 1000V and CAT IV 600V safety standards, this voltage tester delivers maximum protection when working directly on low-voltage installation sources. The IP64-rated construction ensures reliable performance in dusty and damp conditions, with an operating temperature range of -15°C to 40°C for year-round reliability. Supplied complete with 2 x AAA batteries and compliant with IEC 61243-3:2014 standards.

Features and Benefits:
• Large backlit LCD display with LED indicators for clear readings in all lighting conditions
• Multi-function testing including voltage, continuity, resistance, frequency, and rotational field
• Single-handed socket testing capability with integrated spacer for convenient operation
• IP64 protection rating for dust and water resistance in demanding work environments
• Integrated flashlight function for illumination in poorly lit installations
• CAT III 1000V and CAT IV 600V rated for maximum safety on building and low-voltage installations
• Audible continuity indicator for quick circuit testing
• RCD/FI protective switch testing functionality with dual-button activation

Specifications:
Min. Voltage (V): 0.5
Max. Voltage (V): 1000
Current Type: AC/DC
Voltage V AC (min. – max.): 0.5-1,000V
Voltage V DC (min. – max.): 0.5-1,500V
Single-pole Phase Test: 100 - 700 V AC
Protection Class: IP 64
Operating Temperature: -15 - 40°C
Power: 2 x AAA Batteries (supplied)
