Bosch 25 Piece HSS-G Drill Bit Set

The Bosch 25 Piece HSS-G Drill Bit Set is a precision-ground HSS twist drill bit set designed for drilling metal, supplied in a metal cassette.

Each bit has an exposed 135-degree self-centring split-point tip that combines active cutting with accurate centring, so the bit does not wander on the surface. There is no need to pre-punch or pilot drill for holes up to 10 mm. Compared with standard-ground HSS drill bits with chisel edges, the precision-ground HSS construction gives up to 40% faster drilling and up to 50% lower feed pressure.

This set suits engineers, fabricators and maintenance contractors drilling alloyed and non-alloyed steel, cast steel, cast iron, sintered iron, malleable cast iron, non-ferrous metals and hard plastics. The cylindrical shanks match the bit diameter and fit three-jaw drill chucks, for use in drill drivers and drill stands.

The bits are manufactured to DIN 338, Type N (flute angle), with a 135-degree tip and an h8 diameter tolerance.

Features and Benefits:
• Self-centring 135-degree split-point tip reduces wandering
• No pre-punching or pilot drilling needed up to 10 mm diameter
• Precision-ground HSS for fast drilling in metal
• Cylindrical shank fits three-jaw drill chucks
• Manufactured to DIN 338, Type N, with h8 diameter tolerance
• Supplied in a metal cassette for organised storage

Specifications:
Net Weight of the product: 1.420 kg
Diameter, mm: 1.0/1.5/2.0/2.5/3.0/3.5/4.0/4.5/5.0/5.5/6.0/6.5/7.0/7.5/8.0/8.5/9.0/9.5/10.0/10.5/11.0/11.5/12.0/12.5/13.0
Working length, mm: 12/18/24/30/33/39/43/47/52/57/57/63/69/69/75/75/81/81/87/87/94/94/101/101/101

Contents:

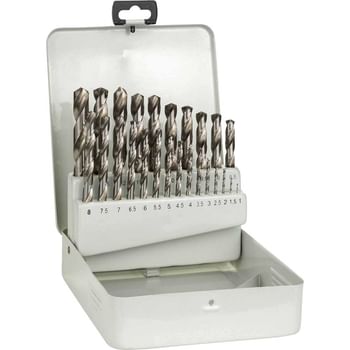

25-piece metal drill bit set HSS-G, DIN 338, 135° in metal cassette
Included diameters (mm): 1; 1.5; 2; 2.5; 3; 3.5; 4; 4.5; 5; 5.5; 6; 6.5; 7; 7.5; 8; 8.5; 9; 9.5; 10; 10.5; 11; 11.5; 12; 12.5; 13
Included working lengths (mm): 12; 18; 24; 30; 33; 39; 43; 47; 52; 57; 57; 63; 69; 69; 75; 75; 81; 81; 87; 87; 94; 94; 101; 101; 101
