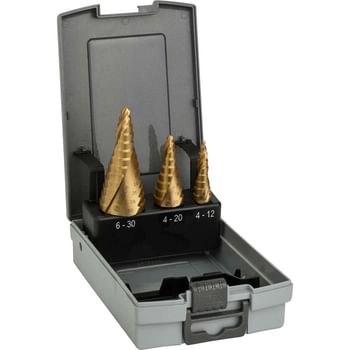

Bosch 3 Piece HSS-TiN Step Drill Bit Set

The Bosch 3 Piece HSS-TiN Step Drill Bit Set is a cone and stepped drill bit set designed for smooth, burr-free drilling in thin materials. Each bit drills several hole diameters, so one bit can replace a number of standard twist drills. They are suited to drilling round holes, enlarging existing ones and deburring.

The split-point tip allows an easy start without pre-punching. The CNC ground spiral flute gives optimised chip removal and less vibration for even drilling, while axial and radial relief grinding delivers a smooth cut. Laser-marked figures in both spiral flutes make the hole diameter easy to see and durable in use.

Made from HSS (high-speed steel) with a TiN (titanium nitride) coating, these bits offer an exceptionally long lifetime when used with coolant. They suit thin materials including sheet steel, stainless steel, non-ferrous metals, sheet plastic and plastic. The 3-flat shank prevents slipping in the chuck and provides high-torque transmission.

Features and Benefits:
• Drills several diameters with a single step drill bit
• Split-point tip allows an easy start without pre-punching
• CNC ground spiral flute for optimised chip removal and less vibration
• Axial and radial relief grinding for a smooth cut
• TiN coating for an exceptionally long lifetime when used with coolant
• Laser-marked hole diameters for easy sizing
• 3-flat shank prevents slipping in the chuck and gives high-torque transmission

Specifications:
Net weight: 0.387 kg
Shank diameter, mm: 6.0/8.0/10.0
Total length, mm: 66.5/70.5/93.5
Step height: 4.0/4.0/4.0
Step diameter (range), mm: 4-12/4-20/6-30

Contents:
HSS-TiN step drill bit: 4-12 mm step diameter; 6 mm shank diameter
HSS-TiN step drill bit: 4-20 mm step diameter; 8 mm shank diameter
HSS-TiN step drill bit: 6-30 mm step diameter; 10 mm shank diameter
