Bosch Cutting Guide and Dust Extraction Outlet 100/115/125mm

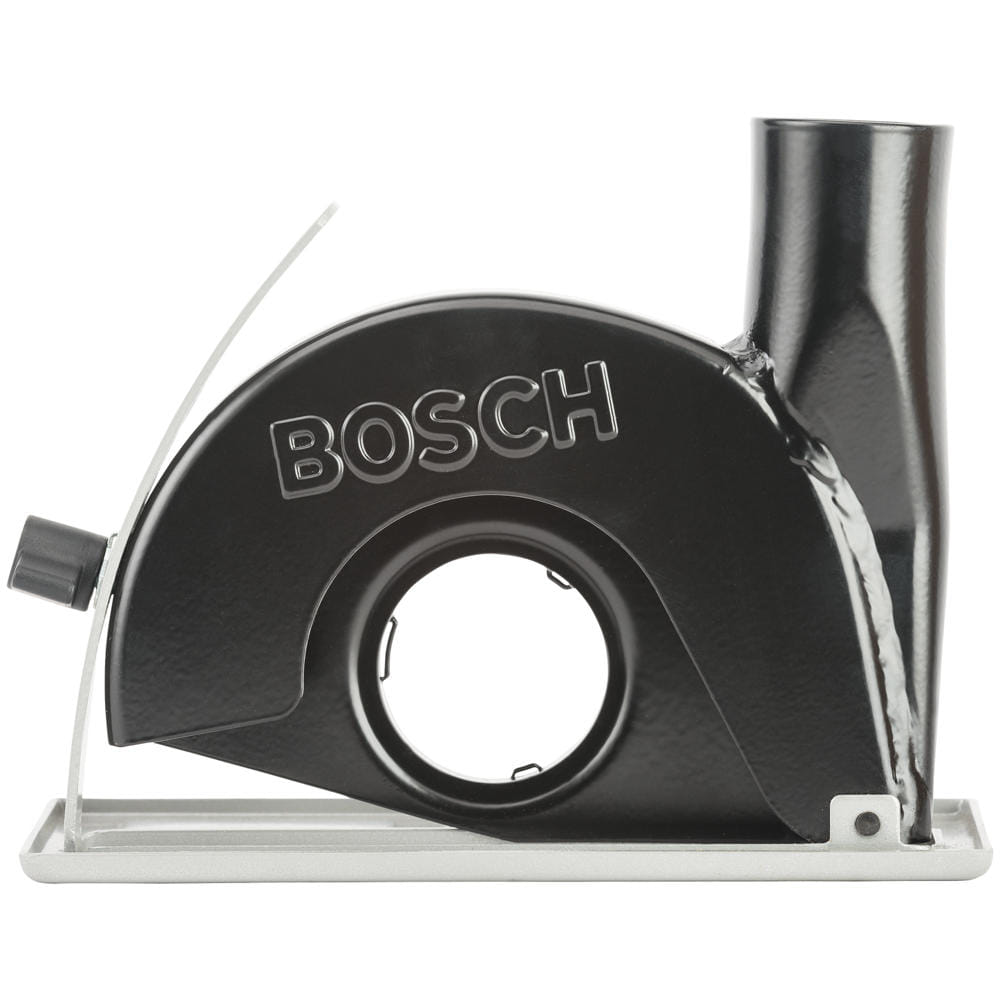

The Bosch Cutting Guide and Dust Extraction Outlet is a tool-free dust extraction guard designed for use with compatible angle grinders.
It suits 100mm, 115mm and 125mm grinders and gives continuous, uncomplicated adjustment of cutting depth. A 35mm dust extraction outlet allows connection to extraction equipment, so you can control dust at the point of cutting.
The handle can be attached from either side, so the guard gives full protection whichever way you work. The steep extraction outlet allows cutting close to edges, which helps when you need to work tight to a wall or boundary. Check the compatibility list below against your grinder's model and part number before ordering.
Features and Benefits:
• Tool-free dust extraction guard for angle grinders
• Continuous, variable adjustment of cutting depth
• 35mm dust extraction outlet
• Handle can be attached from either side for full protection
• Steep extraction outlet for cutting close to edges
Specifications:
Net Weight: 0.850 kg
Diameter: 100/115/125 mm
Dust Extraction Outlet: 35 mm
Suitable for: GWS 5-100 (0 601 376 0..); GWS 5-115 (0 601 376 2..); GWS 6-100 (0 601 375 0..); GWS 6-100 BS (0 601 375 x..); GWS 6-100 E (0 601 375 7..); GWS 6-100 S (0 601 375 0..); GWS 6-115 (0 601 375 0../0 601 375 9..); GWS 6-115 E (0 601 375 5../0 601 375 7../0 601 375 9..); GWS 6-125 (0 601 375 1..); GWS 6-125 E (0 601 375 9..); GWS 7-100 (0 601 388 0../0 601 388 1..); GWS 7-100 E (0 601 388 2..); GWS 7-100 ET (0 601 388 5..); GWS 7-100 T (0 601 388 6..); GWS 7-115 (0 601 388 1..); GWS 7-115 E (0 601 388 2..); GWS 7-115 ET (0 601 388 5..); GWS 7-125 (0 601 388 0../0 601 388 1..); GWS 7-125 ET (0 601 388 5..); GWS 8-100 CE (0 601 378 6..); GWS 18-125 V-LI (0 601 93A 3..); GWS 18.0 V-LI (0 601 93A 3..); GWS 780 C (115 mm) (0 601 377 5..); GWS 850 C (0 601 377 9..); GWS 850 C (125 mm) (0 601 377 7..); GWS 850 CE (0 601 377 9..); GWS 850 CE (125 mm) (0 601 378 7..) Professional; PWS 600 (0 603 411 0..); PWS 650 (0 603 411 0..); PWS 680 (0 603 411 0..); PWS 680-125 (0 603 411 0..)
