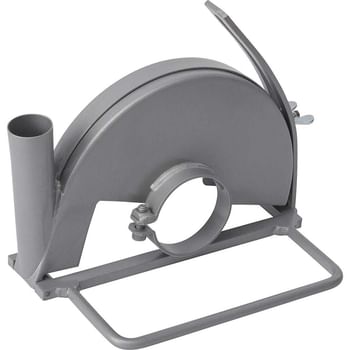

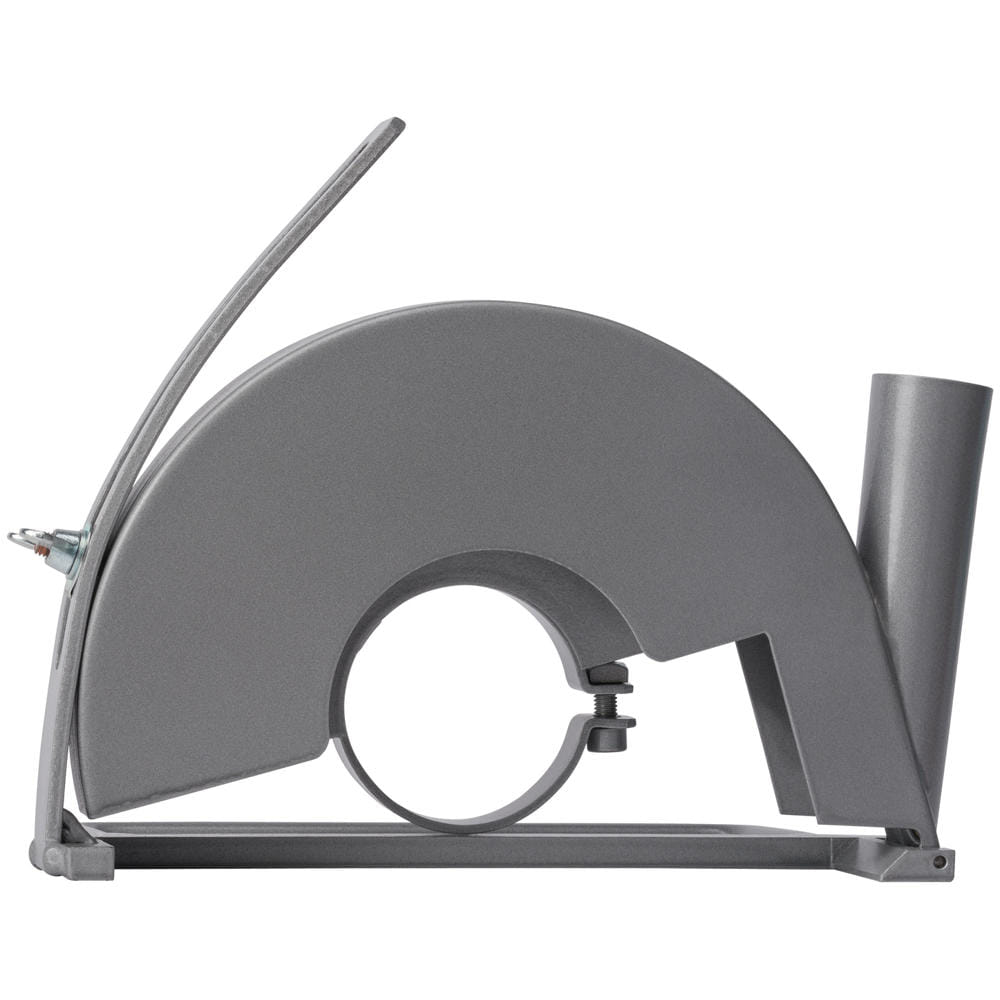

Bosch Cutting Guide and Dust Extraction Outlet 230mm
The Bosch Cutting Guide and Dust Extraction Outlet 230mm is a clamp-fitting dust extraction guard designed for use with 230mm angle grinders. It fits without tools and gives continuous, uncomplicated adjustment of cutting depth.
A 35mm dust extraction outlet lets you connect extraction equipment to the guard. The handle can be attached from either side while still giving full protection, so the guard suits different working positions.
The steep extraction outlet allows cutting close to edges. Check the compatibility list below against your grinder's model and part number before ordering. It covers a wide range of Bosch GWS 230mm and PWS 230mm angle grinders.
Features and Benefits:
• Tool-free clamp fitting for straightforward attachment to the grinder
• Continuous adjustment of cutting depth
• Handle can be attached from either side for full protection
• Steep extraction outlet enables cutting close to edges
• 35mm dust extraction outlet
Specifications:
Net Weight of the product: 2.070 kg
Diameter: 230 mm
Dust extraction outlet: 35 mm
Suitable for: GWS 20-230 (0 601 752 0..); GWS 20-230 H (0 601 850 0..); GWS 20-230 JH (0 601 850 9..); GWS 21-230 HV (0 601 852 B..); GWS 21-230 JHV (0 601 852 3../0 601 852 G..); GWS 22-230 JH (0 601 882 M../0 601 882 Z..); GWS 23-230 / 230 J (0 601 754 0..); GWS 24-230 B + SDS (0 601 854 1..); GWS 24-230 BV (0 601 854 B..); GWS 24-230 BX + SDS (0 601 864 1..); GWS 24-230 H (0 601 854 4../0 601 854 L../0 601 884 1..); GWS 24-230 JBV (0 601 854 G..); GWS 24-230 JBX (0 601 864 8..); GWS 24-230 JH (0 601 854 M..); GWS 25-230 / 230 J (0 601 756 1..); GWS 26-230 B (0 601 856 3../0 601 856 K..); GWS 26-230 BV (0 601 856 S..); GWS 26-230 JBV (0 601 856 G..); GWS 26-230 JH (0 601 856 M..); GWS 26-230 JH + SDS (0 601 856 5..); PWS 20-230 (0 603 359 9../0 603 359 W..); PWS 20-230 J (0 603 359 8../0 603 359 V..)
