Bosch GBH 18 V-26 F 18v Cordless SDS Drill and Dust Extractor
This tool with a quick-change chuck is the universal performer in Bosch’s SDS plus cordless rotary hammer category, making it perfect for daily use. An optional GDE 18V-16 Professional dust extraction unit integrates with the hammer, providing a self-contained HEPA dust solution for maximum mobility. The rotary hammer also features KickBack Control and Electronic Precision Control (EPC) for better tool handling and increased user protection. Its powerful motor delivers 2.6 J of impact energy for fast material removal rates.
This tool is intended for drilling and chiselling in concrete, masonry, wood, and metal. It is compatible with various dust attachments as well as all Bosch Professional 18 V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance.
This tool also includes various additional features such as Constant Speed, a Brushless Motor, Electronic Motor Protection (EMP), as well as an LED light, Rotation Control Clutch, Variable Speed, Vario Lock, and Vibration Control.
Application and Usage:
Construction
Electrician
Landscaping
Plumbing, heating and air conditioning technology
Joiners and carpenters
Features and Benefits:
• Delivers 2.6 J of impact energy for fast drilling and high chisel removal performance
• KickBack Control and Electronic Precision Control for better tool handling and increased user protection
• Optional GDE 18V-16 Professional dust extraction unit integrates with the hammer for a self-contained HEPA dust solution
Specifications:
Length of the Product: 364.0 mm
Width of the Product: 102.0 mm
Height of the Product: 226.0 mm
Net Weight of the product: 3.010 kg
Uncertainty K: 3.0 dB
Noise level: The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 99 dB(A). Uncertainty K= 3 dB.
Sound pressure level: 91.0 dB(A)
Sound power level: 99.0 dB(A)
Total vibration values Name 1: Hammer drilling in concrete/Chiselling in concrete
Vibration emission value ah 1: 15.200 m/s²/9.600 m/s²
Uncertainty K 1: 1.500 m/s²/1.500 m/s²
Battery voltage: 18.0 V
Weight excl. battery: 3.0 kg
Cordless/Corded: Cordless
Rated speed: 0 – 980 rpm
Max. drilling diameter in wood: 30.0 mm
Tool holder: SDS plus
Impact rate, up to: 4,350.0 bpm
Impact rate, from: 0.0 bpm
Impact rate: 0 – 4,350 bpm
Rec. appl. range concrete, hammer drill bits, to: 16.0 mm
Opt. appl. range concrete, hammer drill bits: 8 – 16 mm
Drilling dia. concrete, hammer drill bits: 4 – 26 mm
Rec. appl. range concrete, hammer drill bits, from: 8.0 mm
Drilling dia. concrete, hammer drill bits, from: 4.0 mm
Rated speed, up to: 980.0 rpm
Rated speed, from: 0.0 rpm
Max. drilling diameter in metal: 13.0 mm
Drilling dia. concrete, hammer drill bits, up to: 26.0 mm
Impact energy: 2.600 J

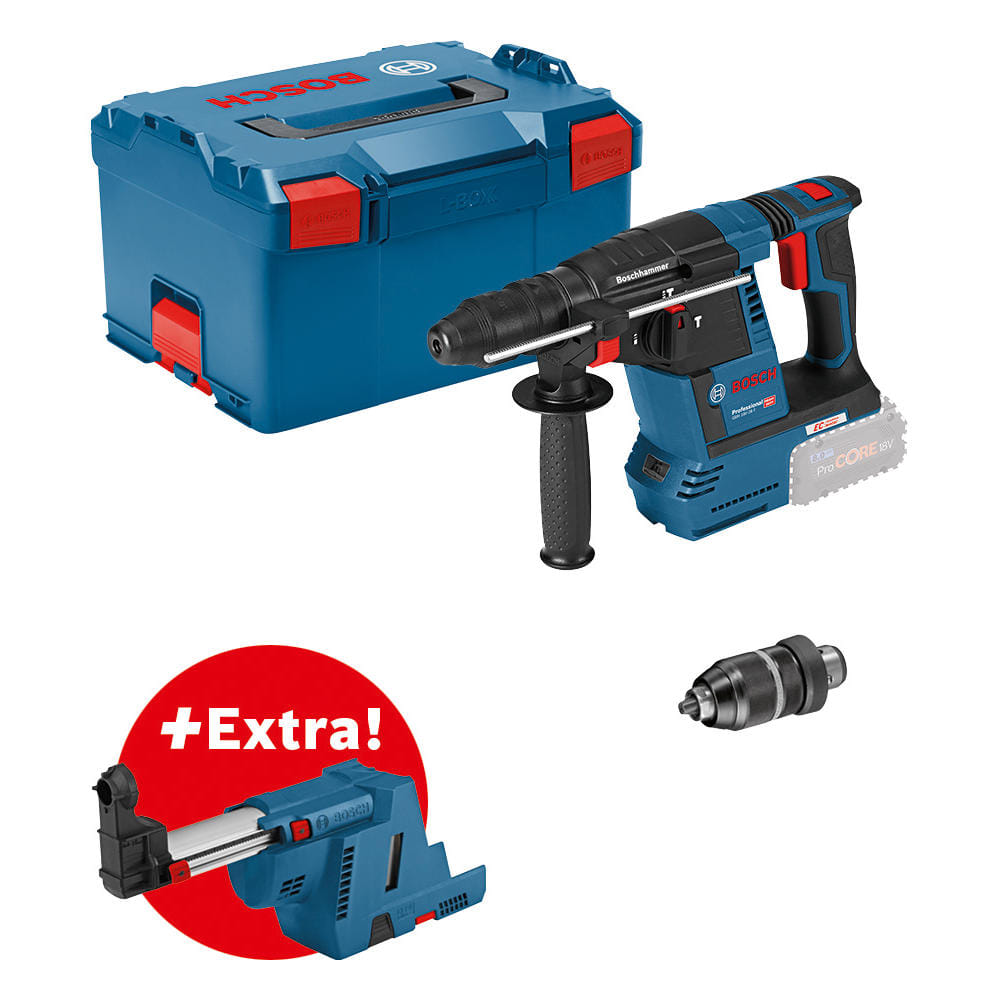

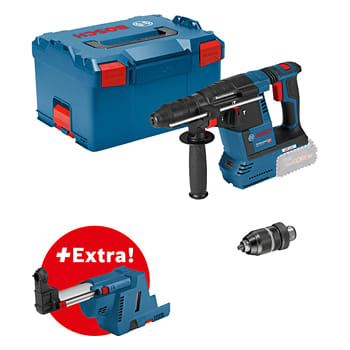

Contents:
Dust extraction system GDE 18V-16 Professional (1 600 A00 51M)
L-BOXX 238 (1 600 A01 2G2)
L-BOXX inlay (1 600 A02 SJ3)
Auxiliary handle (2 602 025 141)
Quick change chuck 13 mm (2 608 572 212)
Depth gauge (1 613 001 009)
Cleaning cloth (1 619 200 413)
Battery AH Explained
The best way to describe battery amp hour is that this is effectively the size of your fuel tank, the more amp hours your battery has then the longer the battery will last between charges. More amp hours does not increase the power of a given tool.
Battery Voltage Explained
A tool with a higher voltage than another is a bit like choosing an engine in a car, the higher voltage will generally mean higher power & performance. As with cars though a bigger engine does not always translate to better performance so it is important to compare the specifications of tools at different voltages between different manufacturers.
