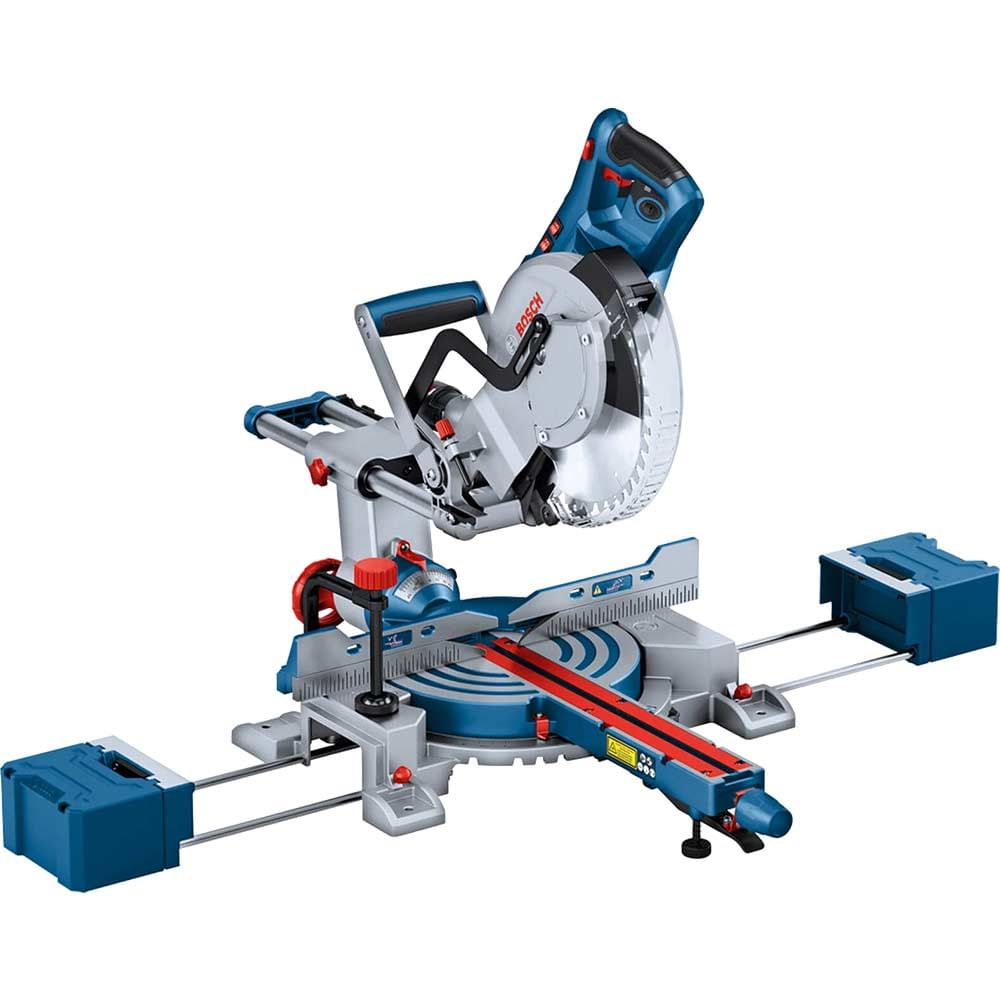

Bosch GCM 305-254 D Mitre Saw

The Bosch GCM 305-254 D is a 254 mm sliding mitre saw designed for carpenters, joiners, and contractors who need precise, versatile cutting in wood, aluminium, and PVC plastic on site or in the workshop.

Powered by a 1,500 W motor running at 4,500 rpm, this corded mitre saw delivers consistent cutting performance across demanding applications. At 0°, it handles cross cuts up to 90 x 305 mm, while the dual bevel function — adjustable up to 47° left and right — combines with mitre settings of up to 48° left and right for compound angle cutting without repositioning the workpiece.

Dual laser lines, positioned either side of the blade, give a clear kerf preview for accurate cut placement. The detachable workpiece supports and table extensions make it straightforward to manage longer lengths of timber and section, while the ergonomic bevel lock wheel adds confidence when working through repeated bevel settings.

At 19.8 kg with one- and two-handed carry options, the GCM 305-254 D is practical to move between locations. It is compatible with Bosch GTA saw stands, Bosch dust extractors, and standard corded mitre saw blades with a 30 mm bore, giving it strong integration with existing Bosch Professional site equipment.

Features and Benefits:
• 1,500 W motor with 4,500 rpm no-load speed for consistent cutting power
• Dual bevel (47° L/R) and dual mitre (48° L/R) settings for compound angle cuts
• Dual laser line display for accurate kerf positioning
• Detachable workpiece supports and table extensions for handling long materials
• Compatible with Bosch GTA saw stands and all Bosch dust extractors
• Multiple carry options for practical site-to-site transport

Specifications:
Rated input power: 1,500 W
Voltage: 220–240 V
No-load speed: 4,500 rpm
Saw blade diameter: 254 mm
Saw blade bore diameter: 30 mm
Cutting capacity at 0°: 90 x 305 mm
Cutting capacity at 45° mitre: 90 x 215 mm
Cutting capacity at 45° bevel: 55 x 305 mm
Bevel setting: 47° L / 47° R
Mitre setting: 48° L / 48° R
Sound pressure level: 88 dB(A)
Sound power level: 101 dB(A)
Uncertainty K: 3 dB
Net weight: 19.8 kg
Dimensions (L x W x H): 787 x 500 x 662 mm

Contents:
Circular saw blade, Standard for Wood, 254 x 30 x 2 mm, 40T (2 608 640 435)
2 x Workpiece support, flexibly pluggable (1 609 B07 675)
Dust bag (2 608 000 841)
Clamp (1 609 B06 932)
