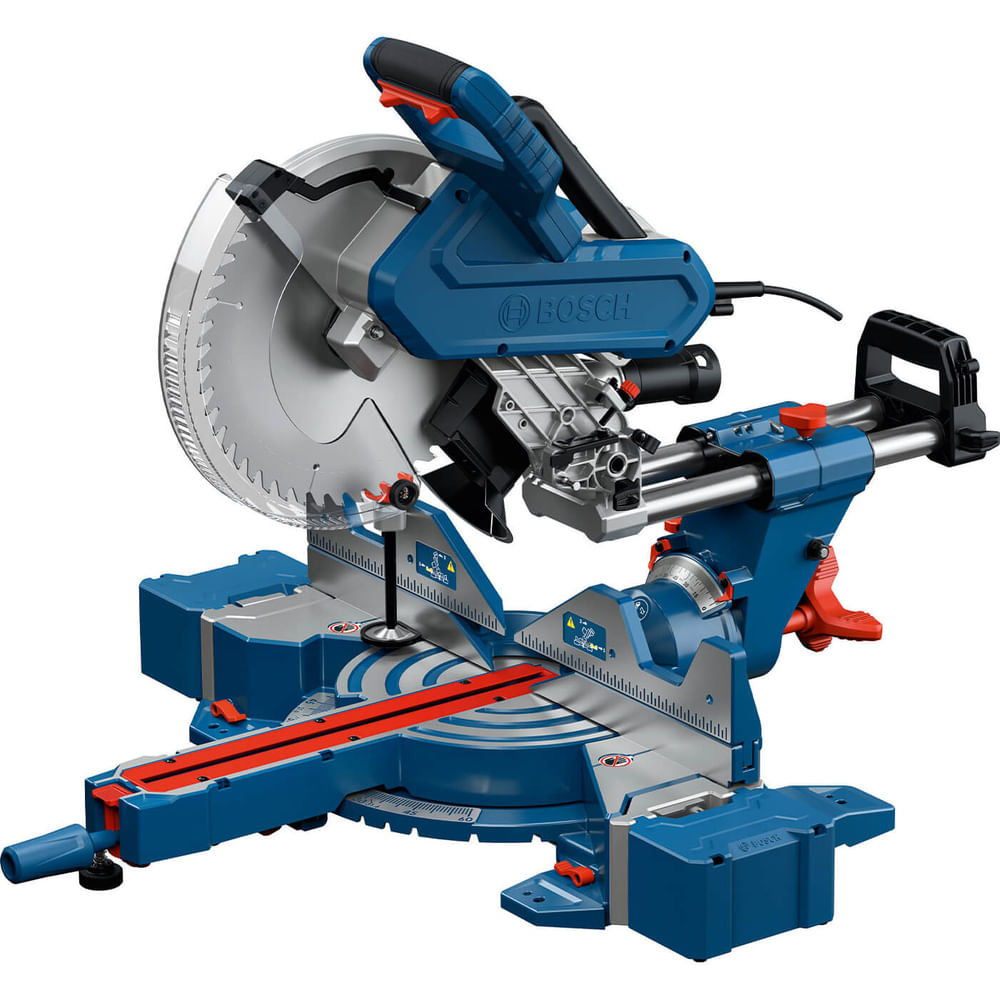

Bosch GCM 340-305 D Mitre Saw 305mm

The Bosch GCM 340-305 D is a 305mm professional mitre saw built for tradespeople who demand consistent cutting accuracy and robust performance on site or in the workshop.

Powered by a 1,800W motor running at 4,050rpm, this saw handles crosscuts through timber and aluminium with ease, managing workpieces up to 340mm wide at 0° and 245mm wide at 45° mitre. The dual bevel capability — 47° left and right — combined with a mitre range of 52° left and 60° right, makes it well suited to complex compound angle work.

An integrated LED light system provides a reliable, adjustment-free cutting line indication, removing the need for recalibration and helping maintain precision over time. The detachable workpiece support with extended table extensions gives solid control over larger or longer sections of material, reducing the risk of inaccurate cuts.

Designed for carpenters, joiners, cabinet installers, window and door fitters, framers, and roofers, the GCM 340-305 D is compatible with the Bosch stand and vacuum cleaner, and includes an effective dust management system. The horizontal handle is designed for both left- and right-handed users, making it a versatile and practical choice across a range of trade applications.

Features and Benefits:
• Integrated LED light with adjustment-free cutting line indication for long-term accuracy
• 1,800W motor delivers powerful cutting performance through timber and aluminium
• Dual bevel (47° left/right) and extended mitre range (52° left, 60° right) for compound angle cuts
• Detachable workpiece support with long table extensions for control over larger materials
• Effective dust management system included, compatible with Bosch vacuum cleaner
• Horizontal handle suitable for left- and right-handed users
• Compatible with Bosch mitre saw stand for enhanced site versatility

Specifications:
Rated input power: 1,800W
Voltage: 220–240V
No-load speed: 4,050rpm
Saw blade diameter: 305mm
Saw blade bore diameter: 30mm
Cutting capacity at 0°: 105 x 340mm
Cutting capacity at 45° mitre: 105 x 245mm
Cutting capacity at 45° bevel width: 340mm
Mitre setting: 52° left / 60° right
Bevel setting: 47° left / 47° right
Sound pressure level: 98dB(A)
Sound power level: 108dB(A)
Uncertainty K: 3dB
Net weight: 21.5kg
Dimensions (W x L x H): 617 x 885 x 709mm

Contents:
Dust bag (1 619 PB6 246)
