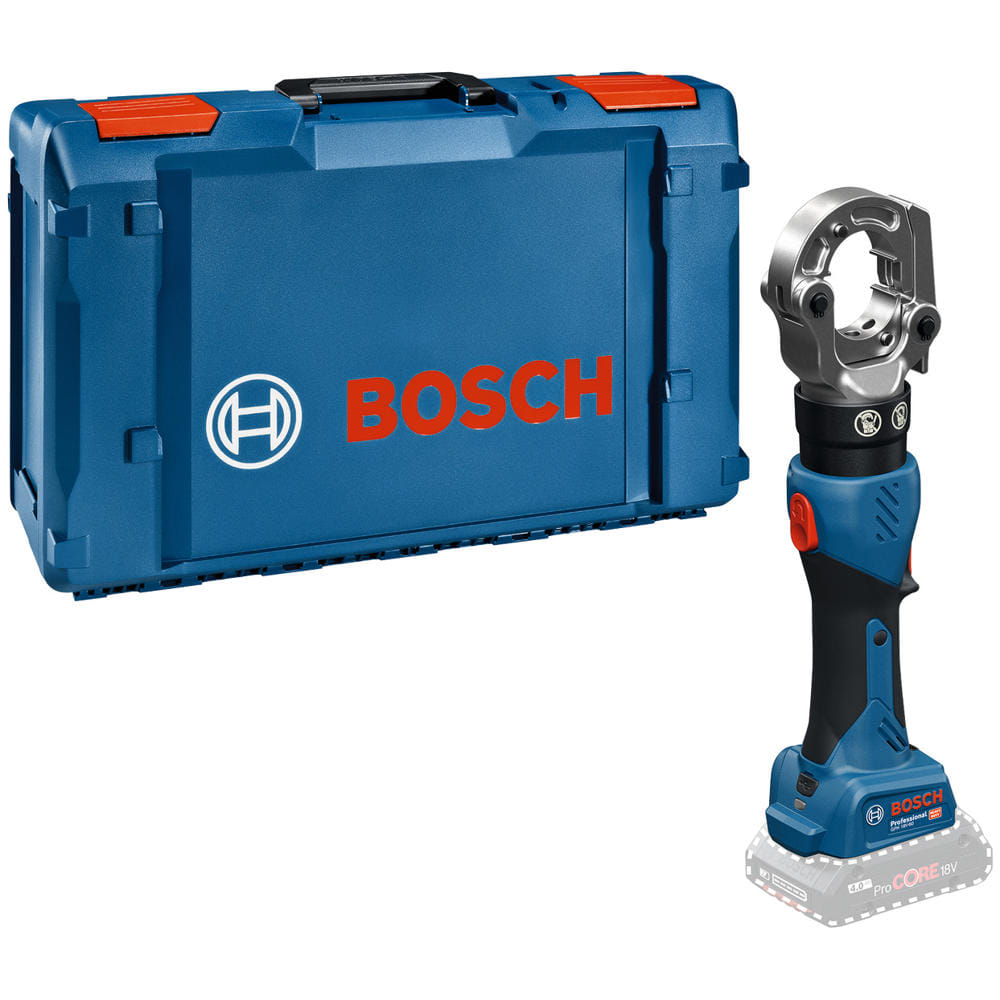

Bosch GPH 18V-60 18v Cordless Hydraulic Crimping Tool
The Bosch GPH 18V-60 is an 18V cordless hydraulic crimping tool designed for crimping cable lugs onto copper and aluminium cables, delivering a consistent 60kN output force.
Powered by an electronic pressure sensor, the tool continuously monitors hydraulic pressure to ensure every crimp is accurate and repeatable. A status LED provides instant visual feedback, indicating when target pressure has been reached, along with tool status and maintenance alerts — giving electricians and contractors confidence on every connection.
The GPH 18V-60 handles copper and aluminium cables up to 300 mm², making it well suited to commercial electrical installations, panel wiring, and heavy cable termination work. The 340-degree rotatable crimping head and optimised centre of gravity reduce fatigue during extended use, while the manual pressure release function allows retraction at any point.
A USB connection and free read-out software provide a complete overview of crimp history, error messages, and maintenance intervals. With an exceptional maintenance cycle of 20,000 crimps, this tool is built for sustained professional use. Each unit ships with a quality control certificate, confirming 100% end-of-line testing.
Features and Benefits:
• Electronic pressure sensor ensures reliable and consistent 60kN output force on every crimp
• Status LED provides instant feedback on target pressure, tool status, and maintenance requirements
• 340-degree rotatable crimping head and optimised centre of gravity for comfortable, fatigue-reducing use
• Suitable for copper and aluminium cables up to 300 mm²
• USB connectivity and free read-out software for crimp history, diagnostics, and maintenance tracking
• Outstanding maintenance interval of 20,000 crimps for sustained professional use
• Quality control certificate included, guaranteeing 100% end-of-line testing
Specifications:
Length: 97.4mm
Width: 77.2mm
Height: 357.0mm
Net Weight: 3.0kg
Stroke Length (max): 17.0mm
Sound Pressure Level: 59.0 dB(A)
Sound Power Level: 67.0 dB(A)
Uncertainty K: 3.0 dB
Contents:
XL-BOXX (1 605 438 1JG)
Battery AH Explained
The best way to describe battery amp hour is that this is effectively the size of your fuel tank, the more amp hours your battery has then the longer the battery will last between charges. More amp hours does not increase the power of a given tool.
Battery Voltage Explained
A tool with a higher voltage than another is a bit like choosing an engine in a car, the higher voltage will generally mean higher power & performance. As with cars though a bigger engine does not always translate to better performance so it is important to compare the specifications of tools at different voltages between different manufacturers.
