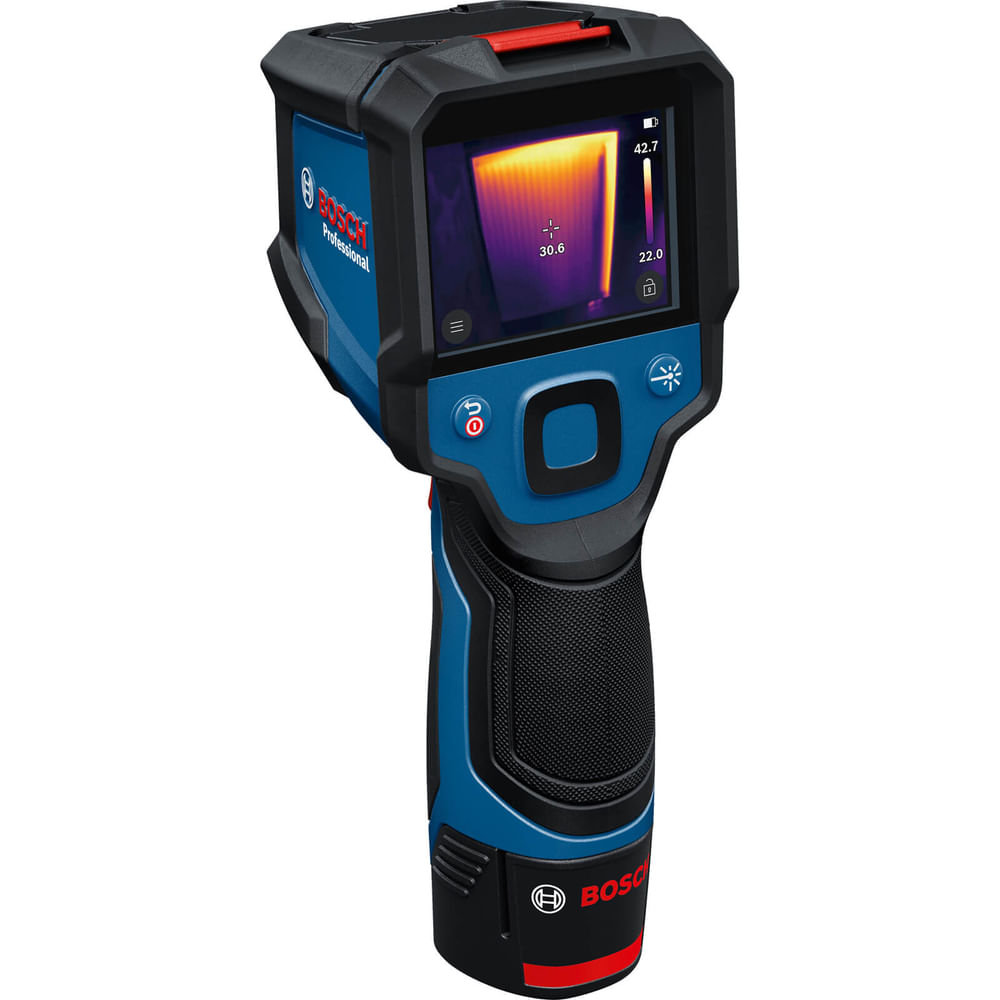

Bosch GTC 12V-450-13 Thermal Imaging Camera

The GTC 12V-450-13 is a professional thermal imaging camera which has a durable design intended for jobsite environments. With a protective flap for the IR sensor and an IP54 rated enclosure for preventing dust and liquid ingress, it is also designed to withstand accidental drops from heights of up to 2 metres. The GTC 12V-450-13 will run on standard AA batteries but alternatively it can also be used with rechargeable Bosch Professional 12v power tool batteries.

Featuring a laser pointer for aligning the camera precisely on the required area, the GTC 12V-450-13 has a clear display with a 256 x 192 px resolution for visualising temperature differences with ease. It has a startup time of 3 seconds and is ideal for applications like checking and locating heating pipes or fault finding electrical components. The onboard memory will store up to 500 images, which can be transferred to a computer via a USB-C port on the device.

Features and Benefits
• Portable thermal imaging camera with two different battery options
• Compatible with standard AA batteries
• Also compatible with lithium ion power tool batteries from the Bosch Professional 12 system
• Visualise temperature differences in high image quality with just one click
• Laser pointer for precise positioning on the target area
• Integrated worklight
• Quick startup time of 3 seconds
• Internal memory can store up to 500 images
• USB-C port for transferring images
• IP54 rated enclosure for protection against dust and liquid splashes
• Impact resistant for withstanding accidental drops
• Compact design: fits easily into tool bags
• Ideal for automotive and HVAC applications, renovation work and diagnostics

Specifications
• Battery Type: AA Alkaline / Bosch Professional 12v Lithium Ion
• Measurement Range: -20°C to +450°C
• Resolution: 0.1°C
• Laser Diode: Laser Class 2, 645-660 nm
• IR Sensor Size: 256 pixels x 192 pixels
• Number of Measuring Points: 49,152
• Field of View: 56° x 42°
• Frame Buffer: 500 Images
• Memory Type: Internal
• Image File Fomat: .jpg
• Data Transfer Port: USB-C
• IP Rating: IP54
• Operating Temperature: -10 - 50°C
• Storage Temperature: -20 - 50°C
• Minimum Focus Distance: 0.5m
• Thermal Image Refresh Rate: 9 Hz
• Maximum Runtime with 1.5 V LR6 AA Batteries: 4 hours
• Maximum Runtime with GBA 12v Batteries: 8 hours
