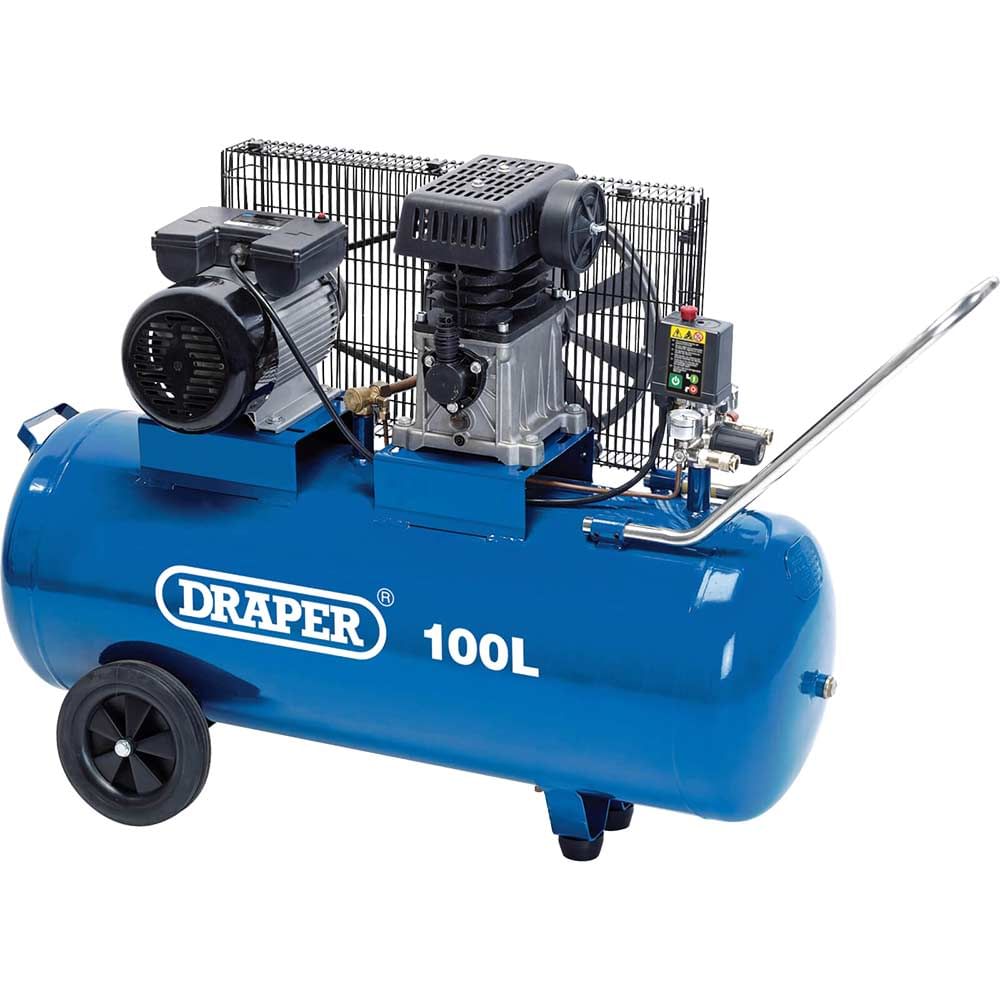

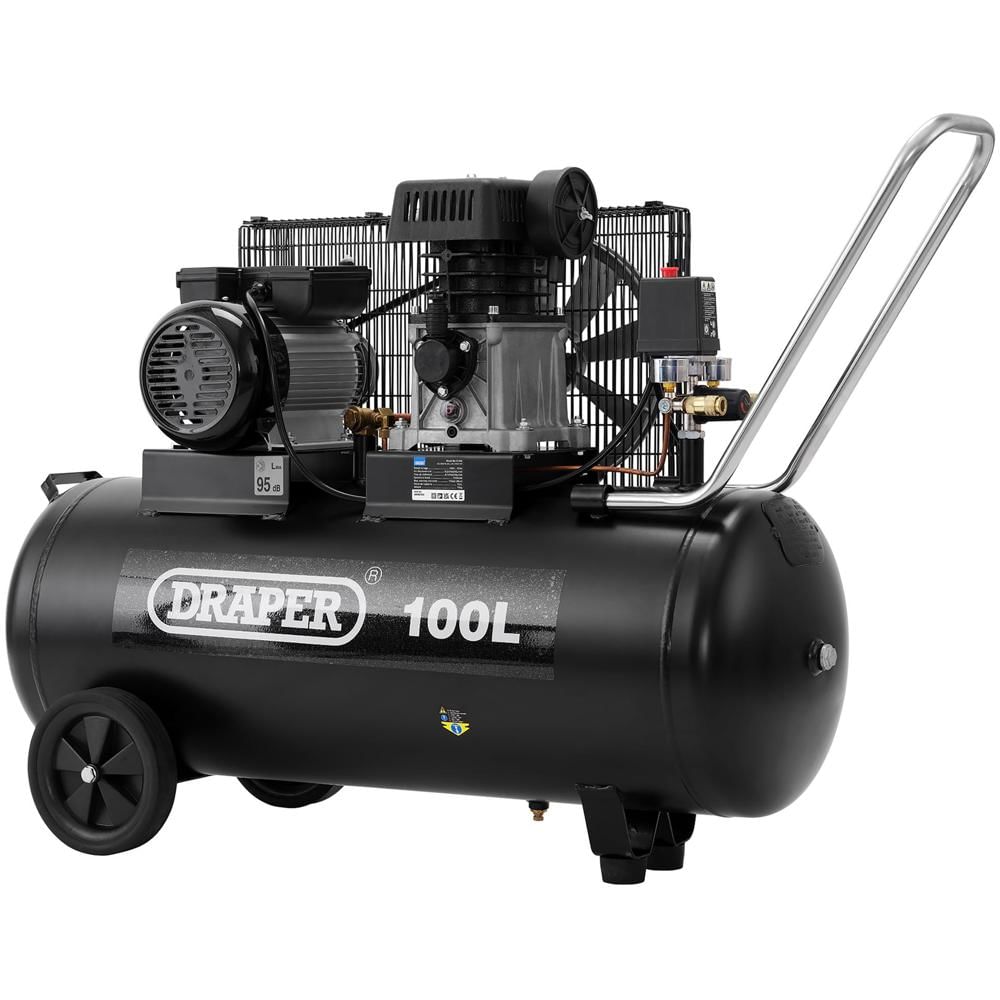

Draper DA100/330 Belt Driven Air Compressor 100 Litre

The Draper DA100/330 is a belt-driven air compressor designed for workshop applications requiring reliable, high-capacity compressed air delivery. With a substantial 100-litre tank and 2.2kW motor, this compressor provides consistent air supply for demanding professional tasks including spray painting, operating air tools, and powering pneumatic equipment.

Belt-driven operation at 1100rpm ensures quieter running and improved efficiency compared to direct-drive alternatives, making it well-suited to extended workshop use. The unit delivers 8.1cfm free air delivery (FAD) at a maximum pressure of 116psi, providing ample power for a wide range of pneumatic applications. Thermal motor protection prevents overheating during prolonged operation, whilst the integrated pressure regulator and gauge allow precise control over output pressure.

Built for professional workshop environments, this compressor features two quick euro coupling outlets enabling simultaneous operation of multiple air tools or easy switching between equipment. The wheels and transport handle facilitate repositioning around the workshop despite the robust 75kg construction. Operating from a standard 230V supply with a 13A input current, installation requires no special electrical requirements beyond a standard UK socket.

Features and Benefits:
• Belt-driven operation for quieter, more efficient performance
• 100-litre tank capacity provides extended run time between cycles
• Two quick euro coupling outlets for flexible tool connection
• Thermal motor protection safeguards against overheating
• Integrated pressure regulator and gauge for precise control
• Wheels and transport handle for easy workshop mobility

Specifications:
Dimensions: 1090 x 430 x 860mm
Motor: 2.2kw (3.0HP)
Speed: 1100rpm
Voltage: 230V
Weight: 75kg
Air displacement: 11.7cfm (330L/min)
Free air delivered (FAD): 8.1cfm (230L/min)
Input current: 13A
Max pressure: 116psi (8bar)
Tank size: 100L

Contents:
1 x Belt-Driven Air Compressor, 100L, 2.2kW
