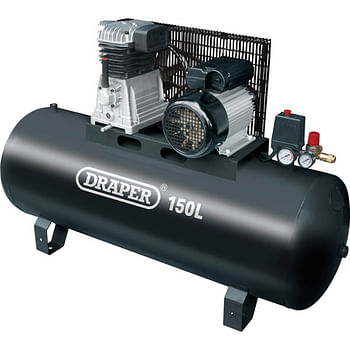

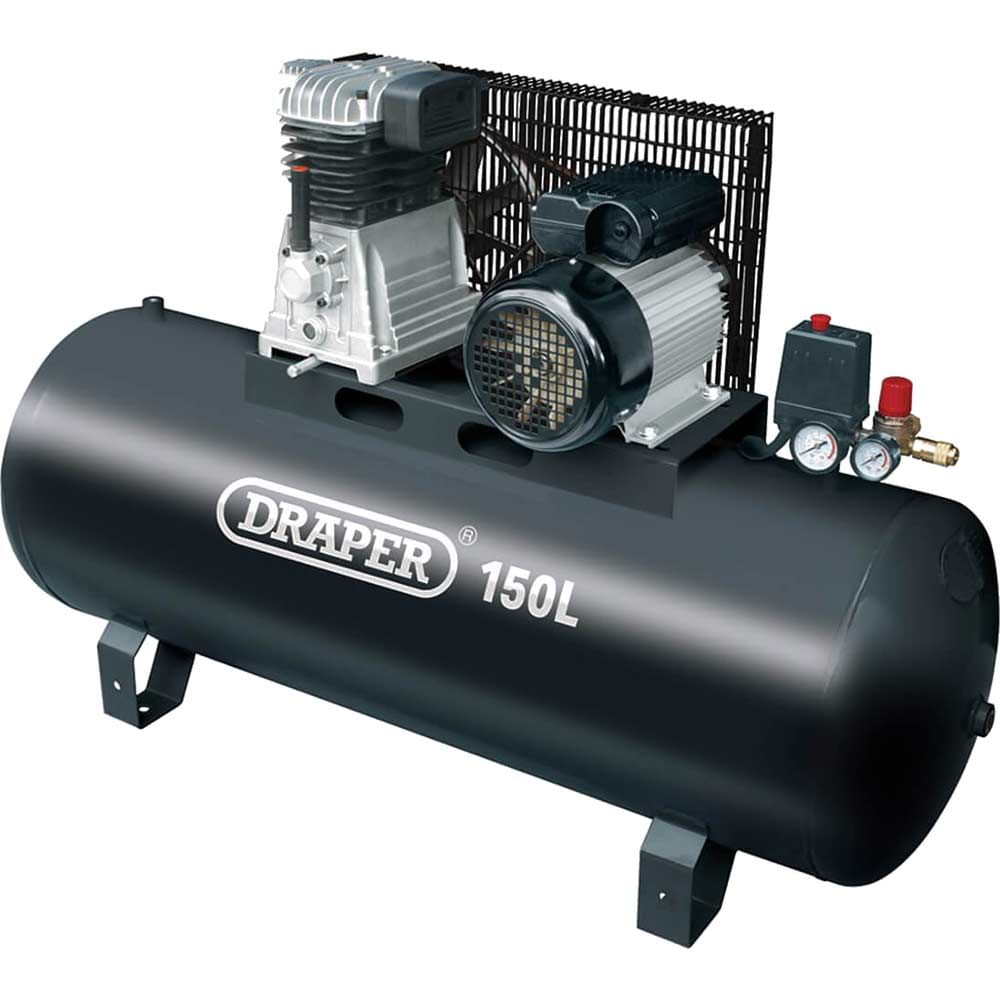

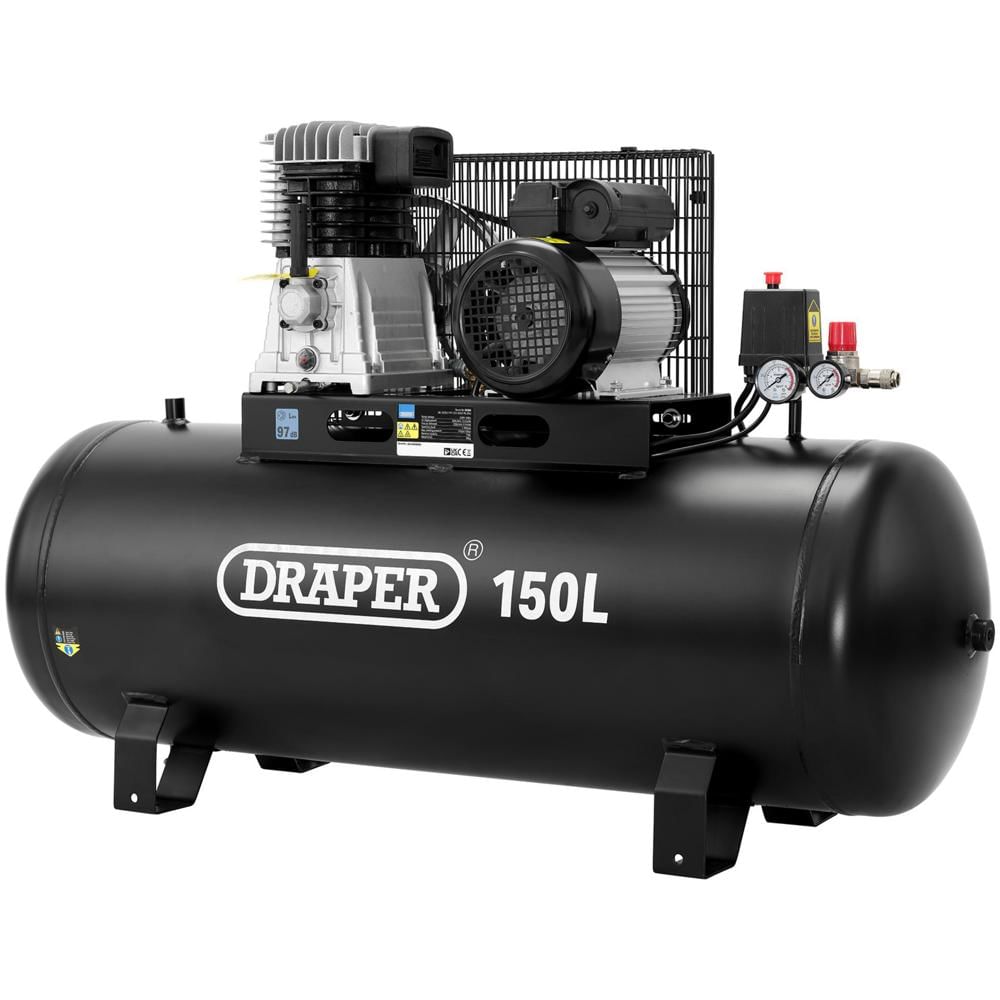

Draper DA150/369S Stationary Belt Driven Air Compressor 150 Litre

The Draper DA150/369S is a belt-driven stationary air compressor with a 150-litre tank, designed for professional workshop applications requiring sustained compressed air delivery. With a free air delivery rate of 8.44 cfm (239 L/min) and maximum pressure of 145 psi (10 bar), this unit provides reliable performance for demanding trade environments.

Powered by a 2.2kW (3.0HP) motor running at 1,100rpm, the belt-driven design operates more efficiently and quietly than direct-drive alternatives whilst generating less heat during extended use. The thermal motor protection overload safeguards the motor from damage, whilst the integrated pressure switch, regulator and gauge provide precise control over air output. A quick-release Euro coupling outlet enables rapid tool changes, minimising downtime during busy workshop schedules.

This compressor is ideal for spray painting, powering pneumatic tools, and continuous workshop tasks where a substantial air reserve is essential. The robust 98kg construction and 150-litre tank capacity make it particularly suitable for fixed workshop installations where sustained air delivery is required. Operating from a standard 230V, 13A supply, it integrates easily into UK workshop electrical systems.

Features and Benefits:
• Belt-driven operation for efficient, quieter running with reduced heat generation
• 150-litre tank capacity provides substantial air reserve for continuous use
• Thermal motor protection overload prevents motor damage during demanding applications
• Quick-release Euro coupling outlet for rapid pneumatic tool changes
• Integrated pressure switch, regulator and gauge for precise air delivery control

Specifications:
Dimensions: 1280 x 480 x 950mm
Motor: 2.2kw (3.0HP)
Speed: 1,100rpm
Voltage: 230V
Weight: 98kg
Air displacement: 13.03 cfm (369 L/Min)
Free air delivered (FAD): 8.44 cfm (239 L/Min)
Input current: 13A
Max pressure: 145psi (10bar)
Tank size: 150L

Contents:
1 x Stationary Belt-Driven Air Compressor, 150L, 2.2kW
