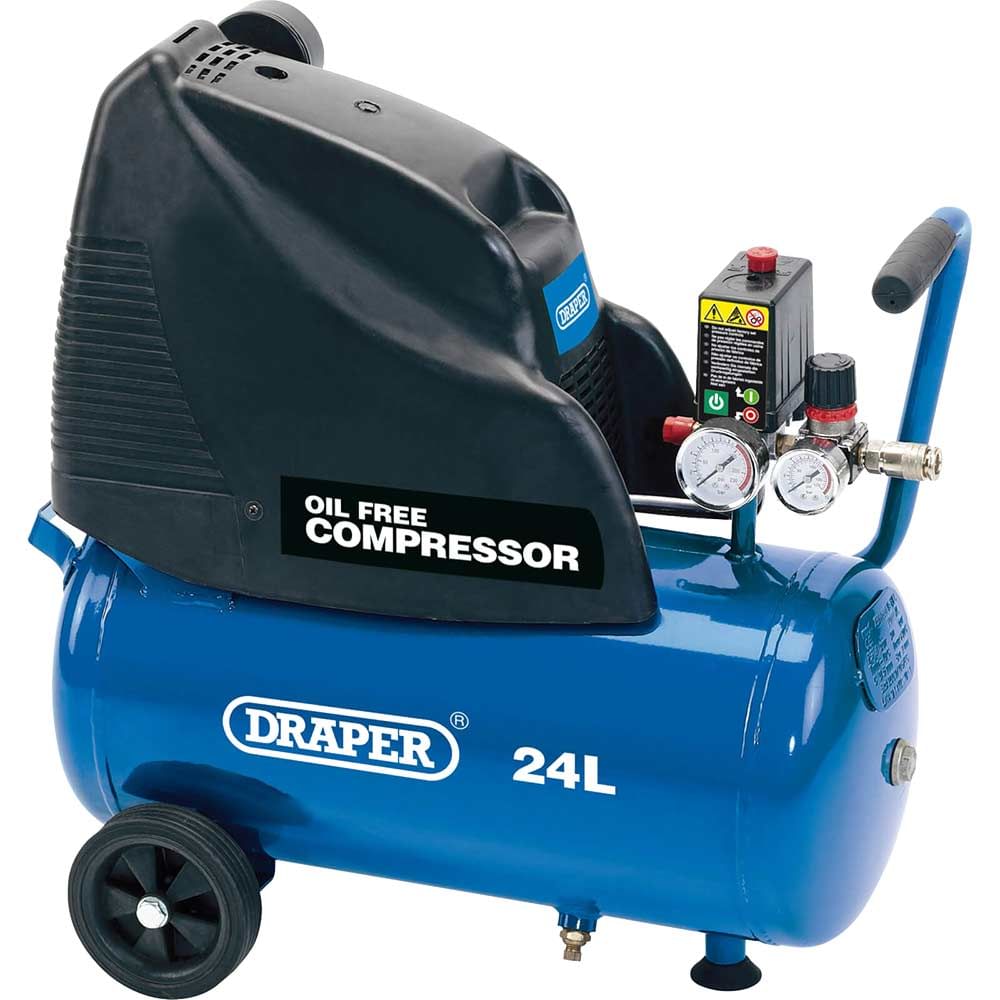

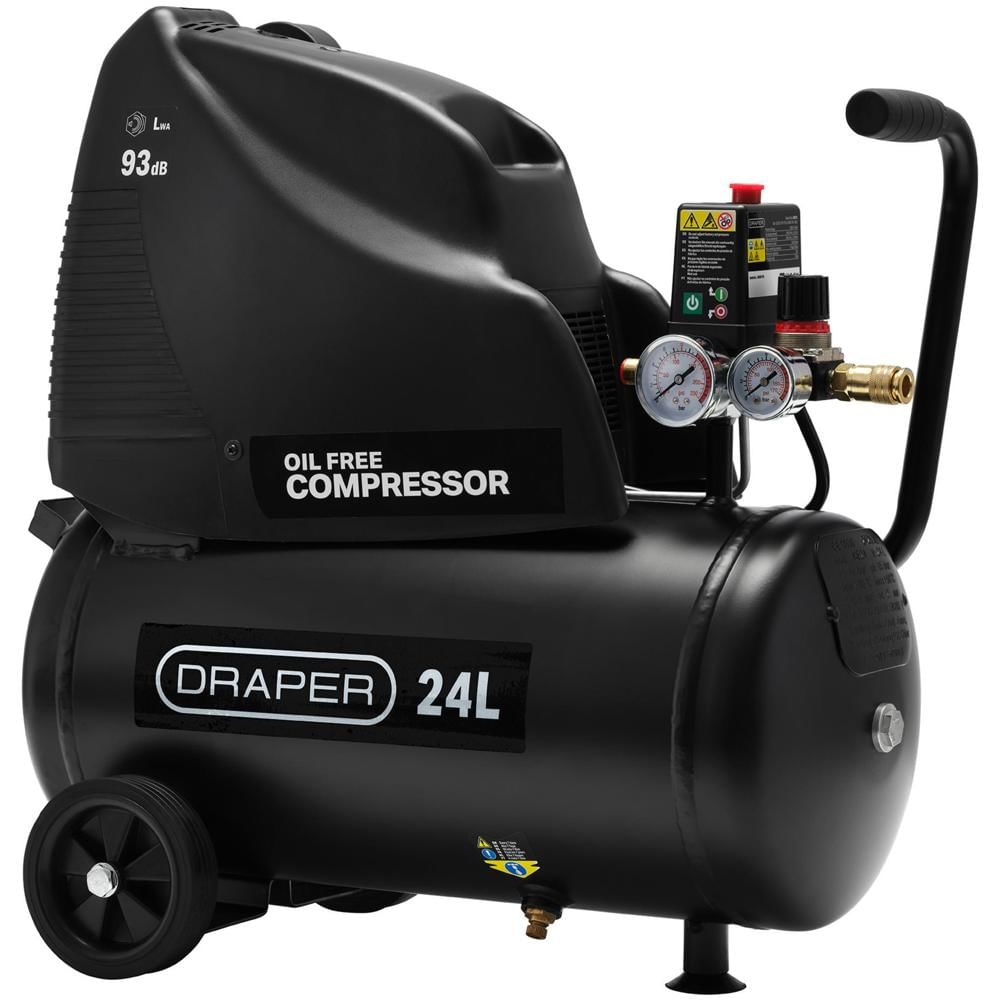

Draper DA25/169 Oil Free Air Compressor 24 Litre

The Draper DA25/169 is a 24-litre oil-free air compressor combining portability with maintenance-free operation, ideal for trade professionals and serious DIY users requiring compressed air on site.

This direct drive compressor delivers 6.0cfm air displacement with a free air delivered (FAD) rating of 3.46cfm at 98L/min, powered by a 1.1kW motor running at 2850rpm. The oil-free design eliminates regular servicing requirements whilst the motor produces no fumes, making it suitable for indoor applications where ventilation may be limited. Maximum operating pressure reaches 116psi (8bar), controlled via an integrated pressure switch, regulator and gauge for precise adjustment.

Built for mobility, the unit features integrated wheels and a transport handle, whilst the compact 600 x 250 x 600mm dimensions and 23kg weight make it manageable for one person. The quick euro coupling outlet ensures fast connection with standard air tools, whilst the robust construction allows the compressor to be transported on its side when required.

Ideal applications include workshop air tool operation, inflation tasks, and general pneumatic work where oil contamination must be avoided.

Features and Benefits:
• Oil-free motor for maintenance-free operation and fume-free running
• 24-litre tank capacity with 116psi maximum pressure
• Integrated wheels and transport handle for easy site mobility
• Quick euro coupling outlet for rapid tool connection
• Can be transported on its side for convenient vehicle loading
• Pressure switch, regulator and gauge for precise control

Specifications:
Air Displacement: 6.0cfm (169L/min)
Dimensions: 600 x 250 x 600mm
Free Air Delivered (FAD): 3.46cfm (98L/min)
Input Current: 13A
Max Pressure: 116psi (8bar)
Motor: 1.1kw (1.5HP)
Speed: 2850rpm
Tank Size: 24L
Voltage: 230V
Weight: 23kg

Contents:
1 x Direct Drive Oil Free Air Compressor, 24L, 1.1kW
