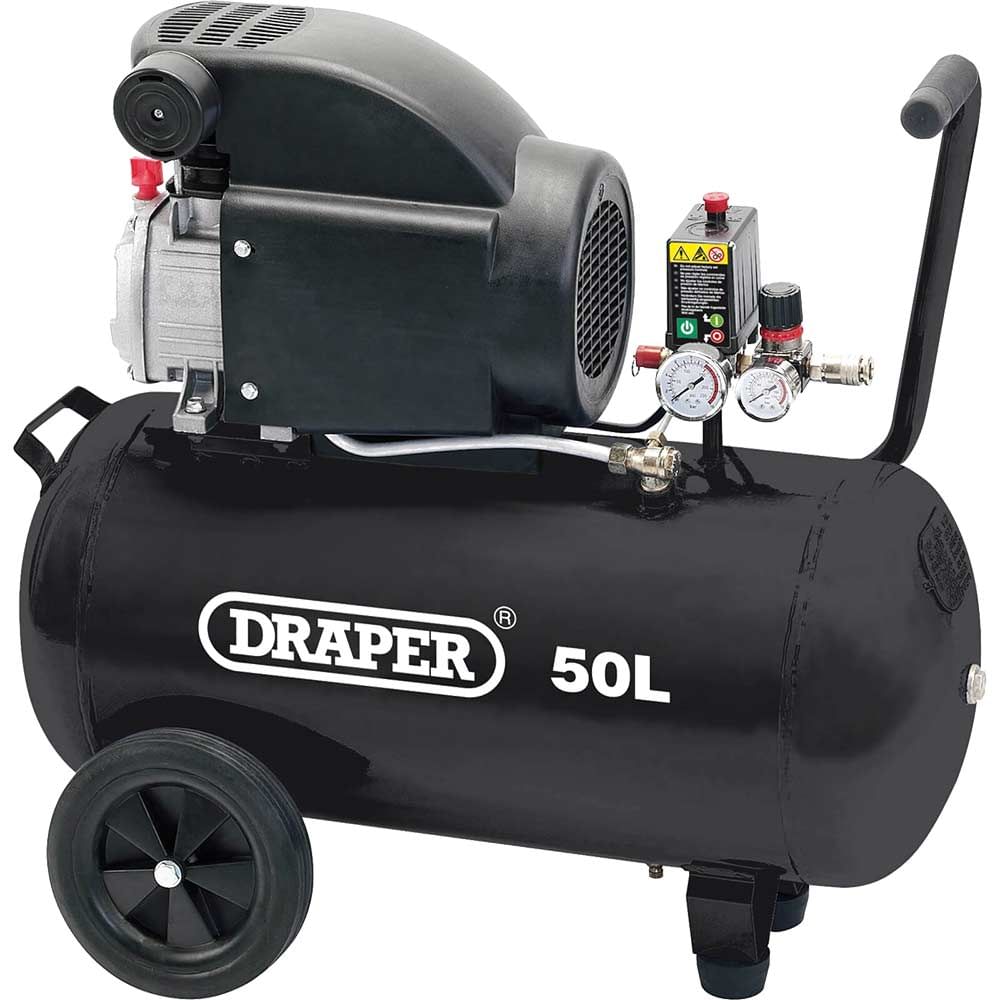

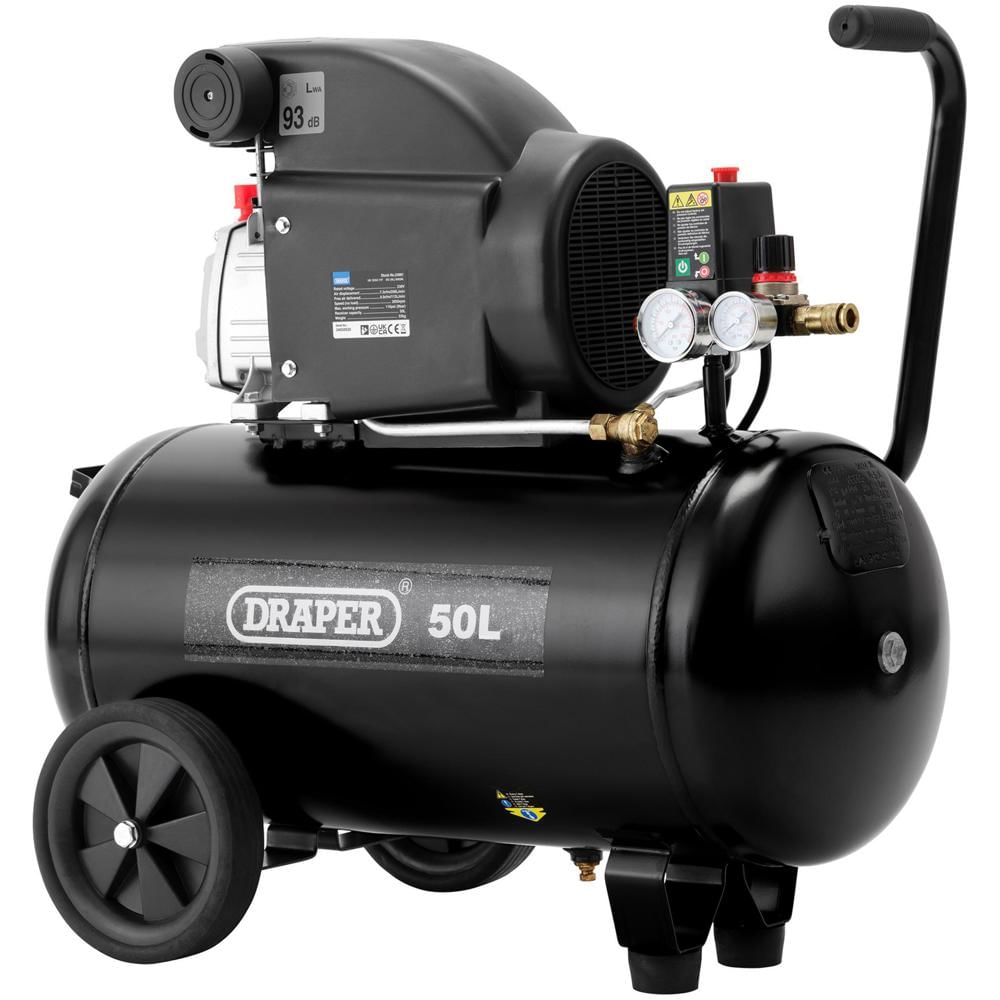

Draper DA50/207 Air Compressor 50 Litre

The Draper DA50/207 is a 50-litre direct drive oiled air compressor designed for demanding workshop and site applications. With a maximum pressure of 116psi (8bar) and a free air delivery of 4.0cfm (113L/min), this robust unit provides reliable compressed air for a wide range of professional tools and equipment.

Powered by a 1.5kW (2.0HP) motor running at 2850rpm, the compressor features comprehensive thermal motor protection to prevent overload damage during extended use. The integrated pressure regulator, pressure gauge and on/off pressure switch give precise control over air delivery, whilst the quick release Euro coupling ensures fast and secure connections to air tools. Operating from standard 230V mains power with a 13A input current, the unit is suitable for UK workshop and site environments without requiring specialist electrical installation.

Built for portability, the DA50/207 incorporates robust wheels and a transport handle for easy movement around workshops and between job sites. At 33kg with compact dimensions of 765 x 325 x 705mm, it strikes an effective balance between tank capacity and manoeuvrability. Sound levels are rated at 97dB (power) and 74.4dB (pressure), making it appropriate for typical trade environments where air tools are regularly employed.

Features and Benefits:
• Quick release Euro coupling for fast tool connections
• Thermal motor protection prevents overload damage
• Wheels and transport handle for easy site mobility
• Pressure regulator and gauge for precise air control

Specifications:
Air Displacement: 7.3cfm (206L/min)
Dimensions: 765 x 325 x 705mm
Free Air Delivered (FAD): 4.0cfm (113L/min)
Input Current: 13A
Max Pressure: 116psi (8bar)
Motor: 1.5kw (2.0HP)
Sound Power Level: 97dB
Sound Pressure Level: 74.4dB
Speed: 2850rpm
Tank Size: 50L
Voltage: 230V
Weight: 33kg

Contents:
1 x Direct Drive Oiled Air Compressor, 50L, 1.5kW
