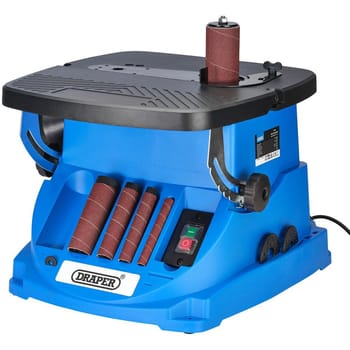

Draper OSBS450D Oscillating Spindle and Belt Sander

The Draper OSBS450D is a versatile oscillating spindle and belt sander that combines two essential workshop tools in one compact unit. Featuring a double configuration design, this sander allows quick switching between spindle and belt sanding modes, making it ideal for cabinetmakers, joiners and furniture makers working with both intricate curved components and flat surfaces.

The machine's dual rotating and vertically oscillating action delivers efficient sanding performance whilst minimising the risk of burn marks on workpieces. A robust 450W induction motor provides consistent power for demanding sanding tasks, whilst the 16mm oscillating stroke ensures even material removal across the full length of the spindle sleeve.

The substantial aluminium work table measures 430 x 410mm and features a tilting section that adjusts from 0 to 45 degrees, enabling precise chamfering and angled edge work. Vented throat plates and an under-table dust extraction channel with 38mm port help maintain a cleaner working environment when connected to a suitable extractor. The sander can be bench mounted or used freestanding, and includes on-board storage for all accessories. A non-latching no-volt safety switch with dust cover provides enhanced operator protection.

Features and Benefits:
• Five spindle drum sizes (13-51mm diameter) for versatile shaping work

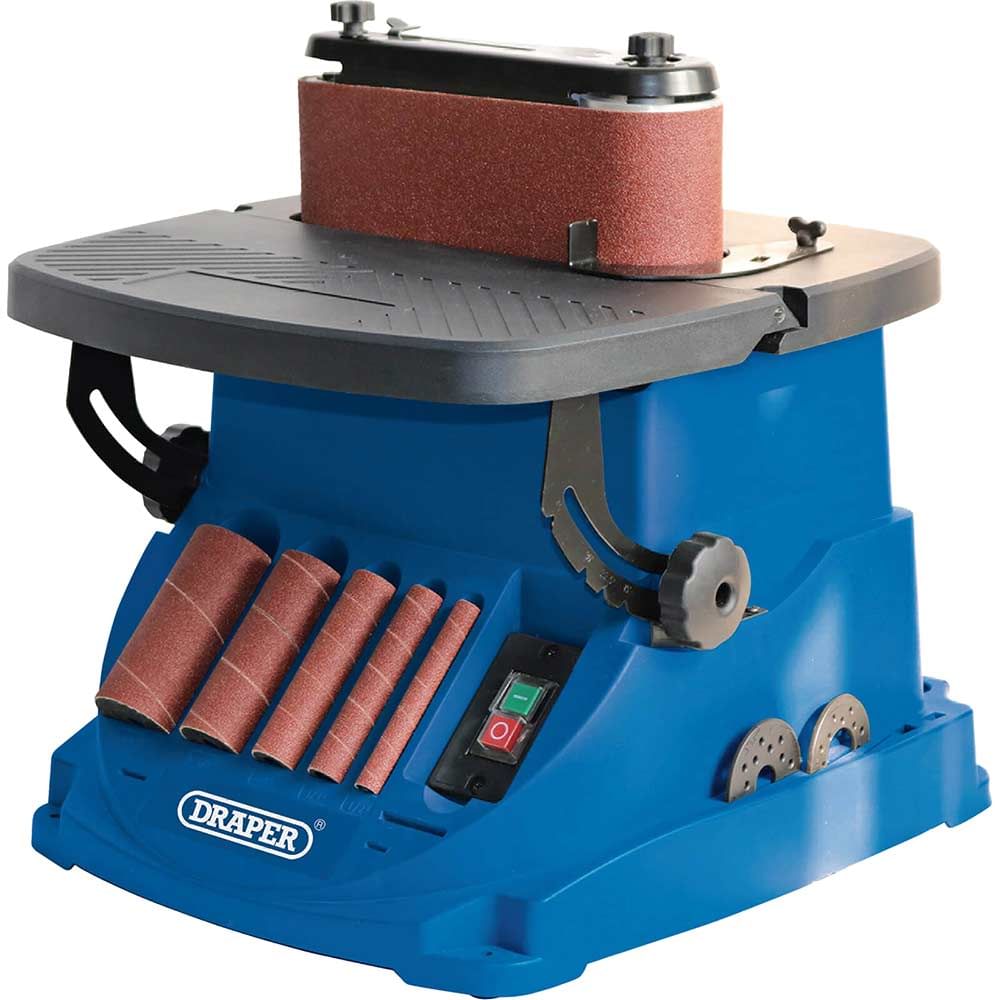

• 610 x 100mm belt sander configuration for flat surface preparation
• No-volt switch prevents automatic restart after power interruption
• Complete accessory kit included for immediate use
• 38mm dust extraction facility for improved workshop cleanliness

Specifications:
Voltage: 230V
Power: 450W
Belt size: 610x 100mm
No load speed: 2000rpm
Sanding sleeves size: 13-51mm diameter (x 5 sizes) x 110mm
Table size: 430 x 410mm
Tilting section: 220 x 410mm
Tilt: 0-45°
Oscillating stroke: 16mm
Dimensions: 330 x 390 x 450mm
Weight: 12.9kg

Contents:
1 x 230V Oscillating Spindle and Belt Sander, 450W
1 x Sanding belt (80 grit)
5 x Sanding sleeves - 13, 19, 25, 38 and 51mm
3 x Throat plates
4 x Spindle drums
1 x Spindle wrench
