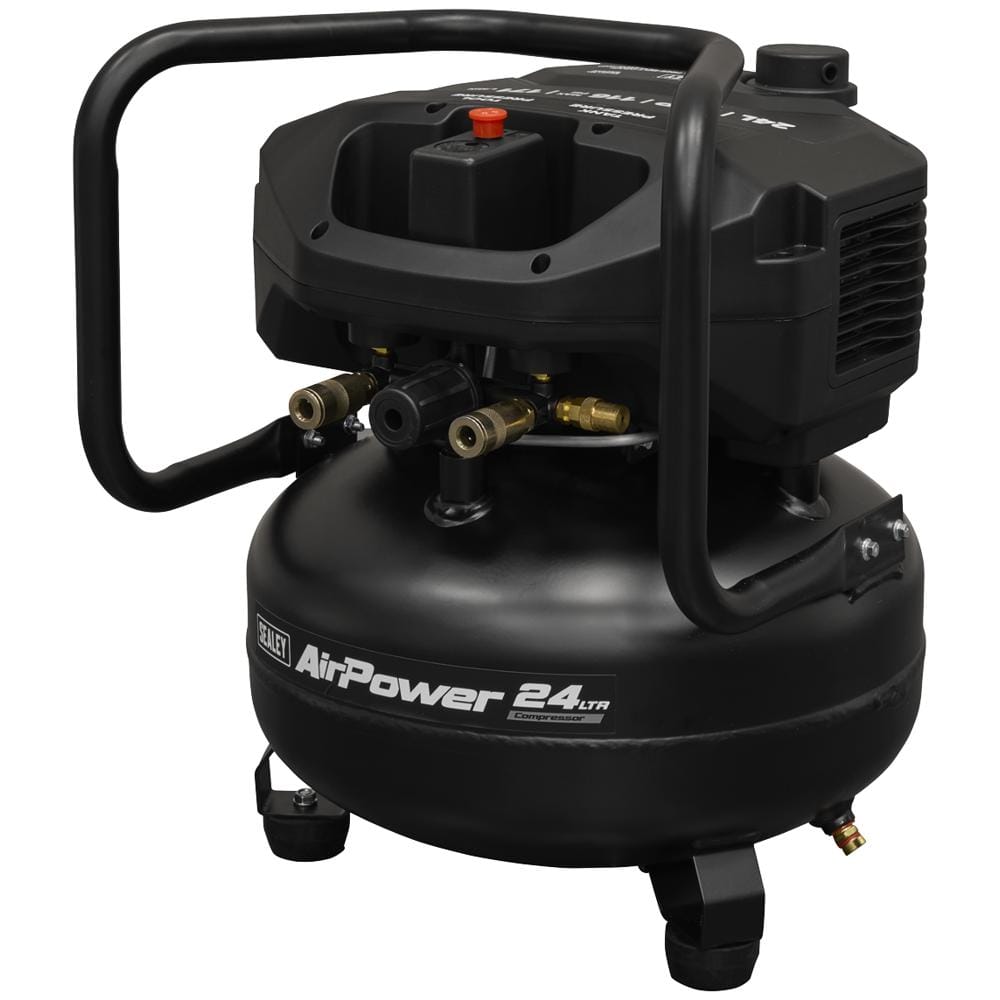

Sealey SAC24V Oil Free Belt Drive Vertical Air Compressor 24 Litre

The Sealey SAC24V is a 24-litre oil-free belt drive vertical air compressor designed for general-purpose workshop use, delivering up to 116psi (8bar) maximum pressure from a standard 230V supply.

The compressor features an aluminium cylinder head paired with a cast iron cylinder, providing enhanced resistance to wear and long-term durability. A fully automatic pressure cut-out switch ensures consistent, controlled operation, while the built-in air regulator with gauge allows straightforward pressure adjustment to suit the task at hand.

The vertical tank design makes this compressor particularly well suited to smaller workshops and confined spaces, taking up a compact footprint without compromising on capacity. Supplied ready to use with a 3-pin plug fitted, it connects directly to a standard UK 13A socket with no additional wiring required.

Being oil-free, this compressor requires minimal routine maintenance, making it a practical choice for contractors, carpenters, and general tradespeople who need reliable compressed air without the upkeep associated with oil-lubricated machines. The quick release coupling outlet and 2hp motor running at 2800rpm make it equally capable for tyre inflation, air tools, and general workshop tasks.

Features and Benefits:
• Oil-free design minimises maintenance requirements
• Cast iron cylinder with aluminium cylinder head for enhanced wear resistance
• Fully automatic pressure cut-out switch for consistent, safe operation
• Built-in air regulator with gauge for precise pressure control
• Vertical tank design saves valuable floor space in smaller workshops
• Supplied with 3-pin plug — ready to connect to a standard 13A UK socket
• Quick release coupling outlet for fast, easy tool connection

Specifications:
Model No: SAC24V
Brand: Sealey
Motor Output: 2hp
Speed: 2800rpm
Air Displacement: 6.04cfm (171L/min)
Maximum Free Air Delivery: 3.3cfm (93L/min)
Maximum Pressure: 116psi (8bar)
Receiver Capacity: 24L
Noise Level: 86dB(A)
Nett Weight: 22.36kg
Size (W x D x H): 490 x 490 x 520mm
Outlet: Quick Release Coupling
Supply: 230V/13A
Minimum Rated Supply: 230V ~ 50Hz
Phase: 1ph
Oil Capacity: N/A
