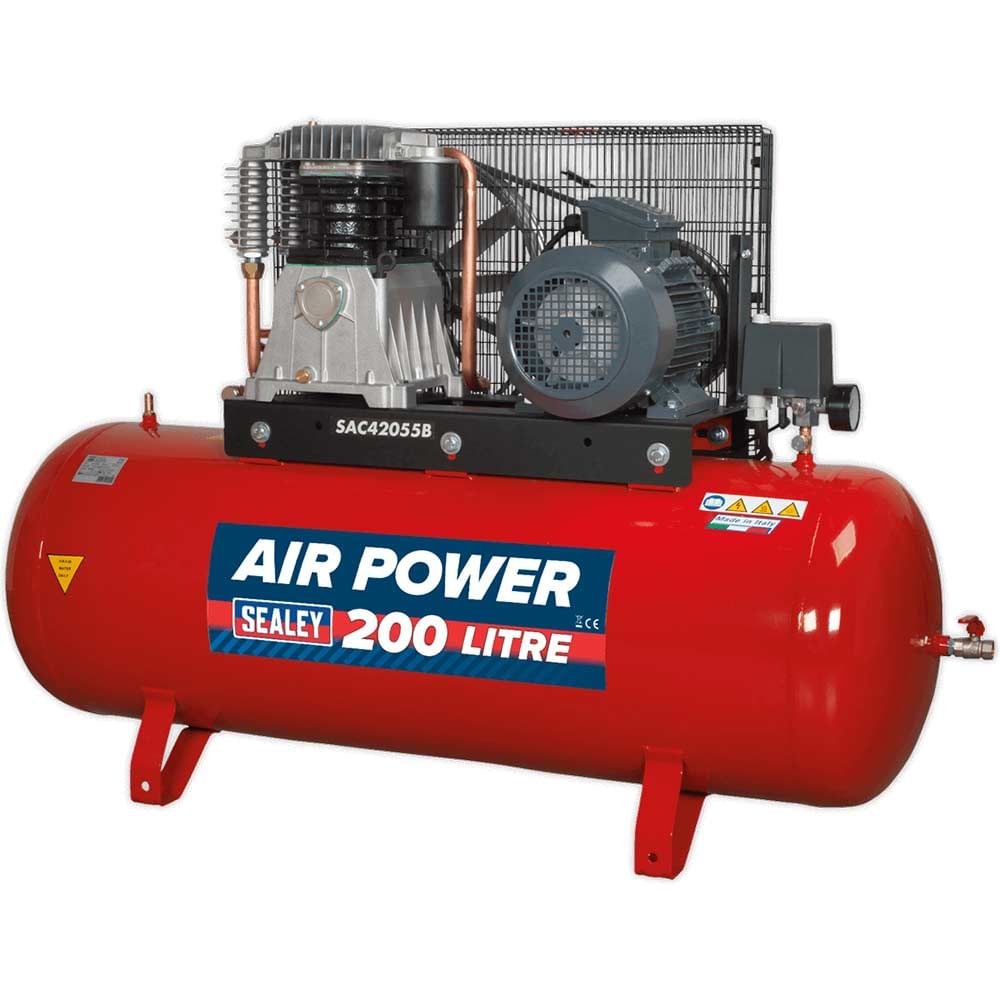

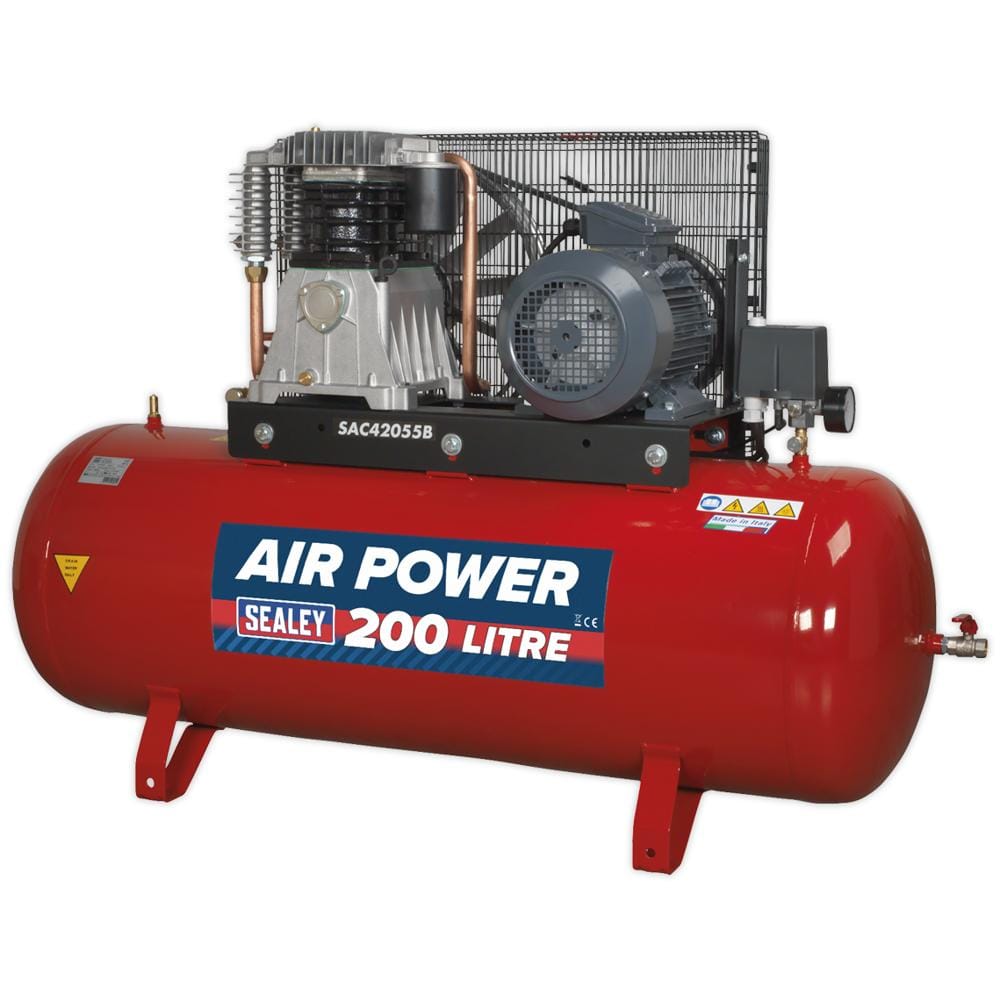

Sealey SAC42055B Air Compressor 200 Litre

The Sealey SAC42055B is a heavy-duty 200-litre air compressor designed for professional workshop environments requiring reliable compressed air delivery. This 3-phase unit combines a robust 2-stage pump system with a 5.5hp motor to deliver maximum free air delivery of 15.1cfm (419L/min) at 145psi, providing the sustained performance demanded by busy commercial workshops.

The 2-stage pump configuration maximises efficiency and keeps running costs significantly lower compared to equivalent single-stage single-phase models. Heavy-duty full cast cylinders are capped by alloy heads that enhance heat dissipation for extended operational life, whilst the pump design ensures consistent performance during intensive use.

Engineered for durability, the compressor features heavy-duty drive guards protecting the belt and flywheel assembly. The flywheel is specifically designed to force air over the pump during operation, aiding cooling and maintaining optimal performance. With an air displacement of 20.7cfm (586L/min) and 200-litre receiver capacity, this compressor is ideal for automotive workshops, fabrication shops, and industrial environments where multiple air tools operate simultaneously.

The unit is supplied complete with full CE certification, test certificates and comprehensive operating and maintenance manual, meeting professional workshop standards. Please note this is a substantial piece of equipment weighing 135kg, requiring adequate assistance at delivery and a 400V/32A three-phase supply.

Features and Benefits:
• 2-stage pump system with 5.5hp motor for superior efficiency and lower running costs
• Heavy-duty cast cylinders with alloy heads for excellent heat dissipation and longevity
• Protected belt drive with air-cooled flywheel design for reliable continuous operation
• 200-litre receiver capacity suitable for demanding professional workshop applications
• Complete with CE certification and comprehensive documentation

Specifications:
Air Displacement cfm(L/min): 20.7(586)
Brand: Sealey
Maximum Free Air Delivery cfm(L/min): 15.1(419)
Maximum Pressure: 145psi(10bar)
Minimum Rated Supply: 32A
Motor Output: 5.5hp
Nett Weight: 135kg
Oil Capacity: 1.2L
Outlet: 1/2"BSP Female Tap
Phase: 3ph
Receiver Capacity: 200L
Size (W x D x H): 1440 x 440 x 965mm
Speed: 1490rpm
Supply: 400V/32A
