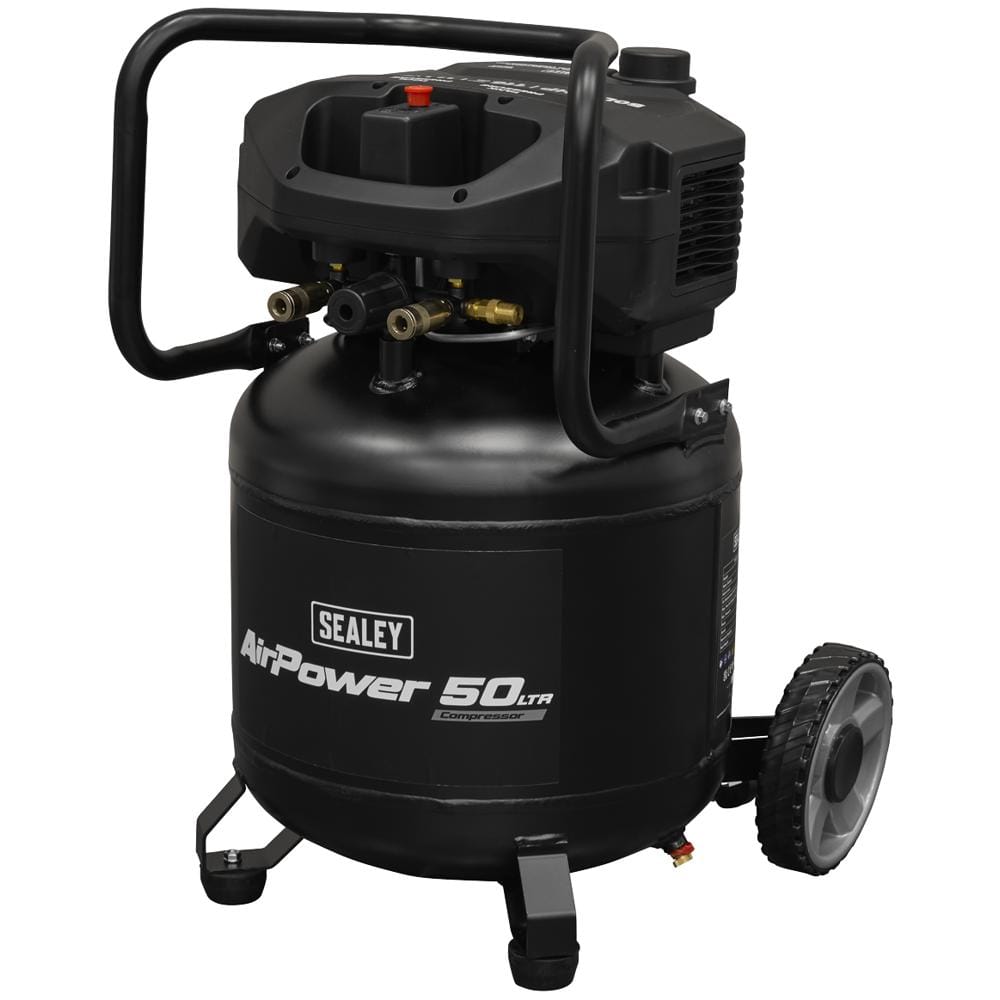

Sealey SAC50V Oil Free Belt Drive Vertical Air Compressor 50 Litre

The Sealey SAC50V is an oil-free belt drive vertical air compressor with a 50-litre receiver, designed for general-purpose workshop use where reliable compressed air and a compact footprint are essential.

The vertical tank orientation keeps the unit's floor space requirement to a minimum — ideal for smaller workshops or busy bays where space is at a premium. At 29kg and with a footprint of 490 x 490mm, it's practical to position without dominating the workspace.

Built for durability, the compressor features an aluminium cylinder head paired with a cast iron cylinder for improved wear resistance — a combination well-suited to regular workshop use. It delivers an air displacement of 6cfm (171L/min) and a maximum free air delivery of 3.3cfm (93L/min), with a maximum working pressure of 116psi (8bar).

The unit is supplied ready to use, fitted with a 3-pin plug for standard 230V single-phase supply and a quick release coupling outlet. An automatic pressure cut-out switch and integrated air regulator with gauge allow straightforward pressure management without additional equipment.

Features and Benefits:
• Oil-free operation — reduced maintenance and cleaner air output
• Cast iron cylinder with aluminium head for long-term wear resistance
• Vertical tank design minimises floor space — ideal for compact workshops
• Automatic pressure cut-out switch for safe, unattended operation
• Integrated air regulator with pressure gauge for accurate pressure control
• Quick release coupling outlet for fast tool connection
• Supplied with 3-pin plug — ready to use from a standard 230V socket

Specifications:
Model No: SAC50V
Brand: Sealey
Motor Output: 2hp
Speed: 2800rpm
Air Displacement: 6.04cfm (171L/min)
Maximum Free Air Delivery: 3.3cfm (93L/min)
Maximum Pressure: 116psi (8bar)
Receiver Capacity: 50L
Noise Level: 86dB(A)
Supply: 230V/13A
Minimum Rated Supply: 230V ~ 50Hz
Phase: 1ph
Outlet: Quick Release Coupling
Nett Weight: 29kg
Size (W x D x H): 490 x 490 x 730mm
