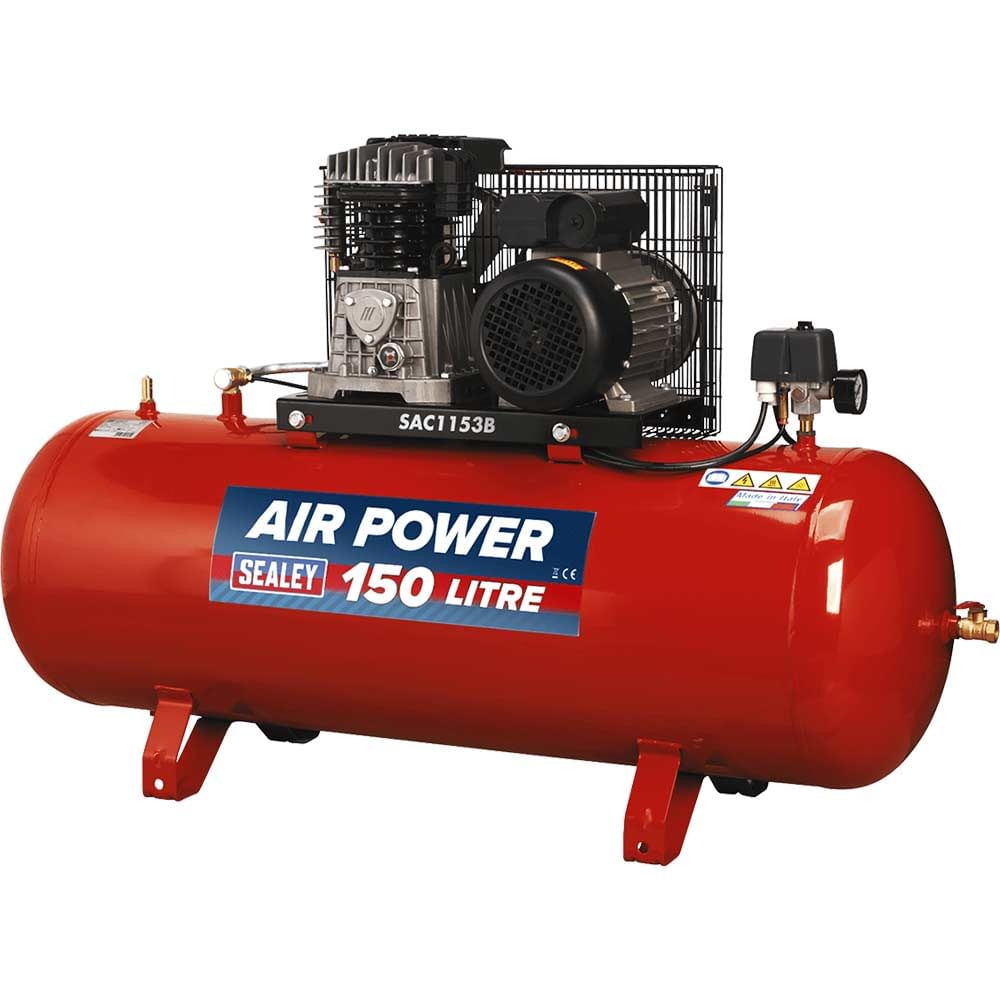

Sealey SAC1153B Belt Drive Air Compressor 150 Litre

The Sealey SAC1153B is a professional-grade belt drive air compressor with a 150-litre receiver tank, designed to deliver reliable compressed air for demanding workshop applications. Built around a genuine 3.5hp motor with twin capacitors and centrifugal switch, this unit starts effortlessly on a standard 13A supply, making it practical for most UK workshop environments without requiring dedicated electrical installation.

The pump assembly features heavy-duty full cast cylinders capped with alloy heads that efficiently dissipate heat during extended operation, contributing to enhanced longevity and consistent performance. Heavy-duty drive guards protect the belt and flywheel, which is engineered to direct cooling air over the pump during operation. With a maximum free air delivery of 10.59cfm (300L/min) and air displacement of 15cfm (425L/min), this compressor provides sufficient airflow for pneumatic tools including impact wrenches, spray guns, and air-powered sanders.

The 150-litre receiver capacity reduces motor cycling and provides stable air pressure for sustained work periods. Mobility is addressed through a practical wheel configuration—two rear wheels and two front casters—combined with a sturdy front handle for straightforward workshop positioning and relocation.

Features and Benefits:
• 3.5hp motor with twin capacitors operates on standard 13A supply for easy workshop integration
• Full cast cylinders with alloy heads for superior heat dissipation and extended service life
• 150-litre receiver provides consistent air pressure and reduces motor start-stop cycles
• Wheel and caster arrangement with front handle enables easy workshop positioning
• Heavy-duty drive guards protect critical components and aid pump cooling

Specifications:
Air Displacement cfm(L/min): 15cfm(425L/min)
Brand: Sealey
Maximum Free Air Delivery cfm(L/min): 10.59cfm(300L/min)
Maximum Pressure: 116psi(8bar)
Minimum Rated Supply: 13A
Motor Output: 3.5hp
Nett Weight: 85kg
Noise Level: 90dB
Oil Capacity: 1000ml
Outlet: Quick release coupling
Phase: 1ph
Receiver Capacity: 150L
Size (W x D x H): 1220 x 480 x 950mm
Speed: 1100rpm
Supply: 230V/13A
